Wanluda ABS Plastic Cement Concrete Test Moulds
Premium Material & Build Quality
Our concrete cube test mould is crafted from 100% new high-rigidity ABS engineering plastic, no recycled inferior fillers, delivering stable performance for lab sampling:
● Thickened outer wall with vertical reinforcing ribs: Anti-bulge, anti-deformation under vibration table compaction, no expansion when filled with fresh concrete.
● Seamless one-piece injection molding: Smooth polished inner cavity, no assembly gaps to stop cement slurry leakage; concrete residue falls off easily for quick demoulding without damaging test cubes.

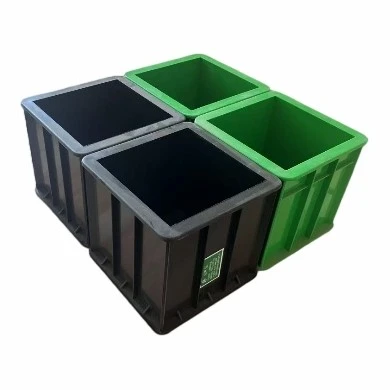

● Dual color options (same performance, only visual difference): Matte black and bright green for selection. Matte black surface has excellent stain resistance, fit for high-frequency daily lab testing; bright green stands out visually, convenient for sorting test batches from different engineering projects in curing rooms. There is no difference in wall thickness, precision, service life or technical performance between the two colors.
● Anti-corrosion performance: Resist acid and alkali erosion from cement mortar, not prone to aging under long-term damp curing room environment.
Wide Application Scenarios
This standard plastic test mould is essential consumables for all construction material testing industries worldwide:
1. Commercial Concrete Batching Plants: Daily sampling to cast concrete cubes for compressive strength inspection of ready-mixed concrete.
2. Highway, Railway & Hydraulic Engineering Labs: Prepare test blocks for bridge, road subgrade, dam concrete mechanical performance tests.
3. Third-Party Building Inspection Institutes: Standard specimen making for project acceptance, official test reports.
4. University Civil Engineering Teaching Labs: Student experiment equipment for concrete material mechanics courses.
5. Municipal Construction Supervision Stations: Portable on-site sampling moulds for residential buildings, road and infrastructure project quality monitoring.
Simple & Convenient Operation
The mould is designed for low-effort daily lab operation with standardized workflow:
1. Pre-treatment: Wipe a thin layer of release oil on the inner smooth wall before pouring concrete to avoid adhesion.
2. Sample Casting: Pour fresh concrete into the mould, place the mould on a vibration table to eliminate internal bubbles.
3. Curing Storage: Stack multiple moulds neatly in curing rooms, flat top and bottom design saves storage space.
4. Demoulding: After standard curing period, flip the lightweight plastic mould to take out intact concrete test block in seconds.
5. Daily Maintenance: Rinse with water after use to clear residual cement, store in ventilated dry area for repeated reuse.
Flexible Customization Support
We provide full personalized customization to match global customers' unique testing demands:
1. Size Customization: Standard stock sizes include 100×100×100mm, 150×150×150mm cube moulds; custom non-standard dimensions such as 70.7mm mortar cube, 40×40×160mm flexural beam mould, concrete anti-permeability mould are available.
2. Color Customization: Custom special colors besides standard black and green for your lab batch classification management.
3. Brand Logo Customization: Emboss or print your company brand/logo on the outer wall of moulds for bulk orders.

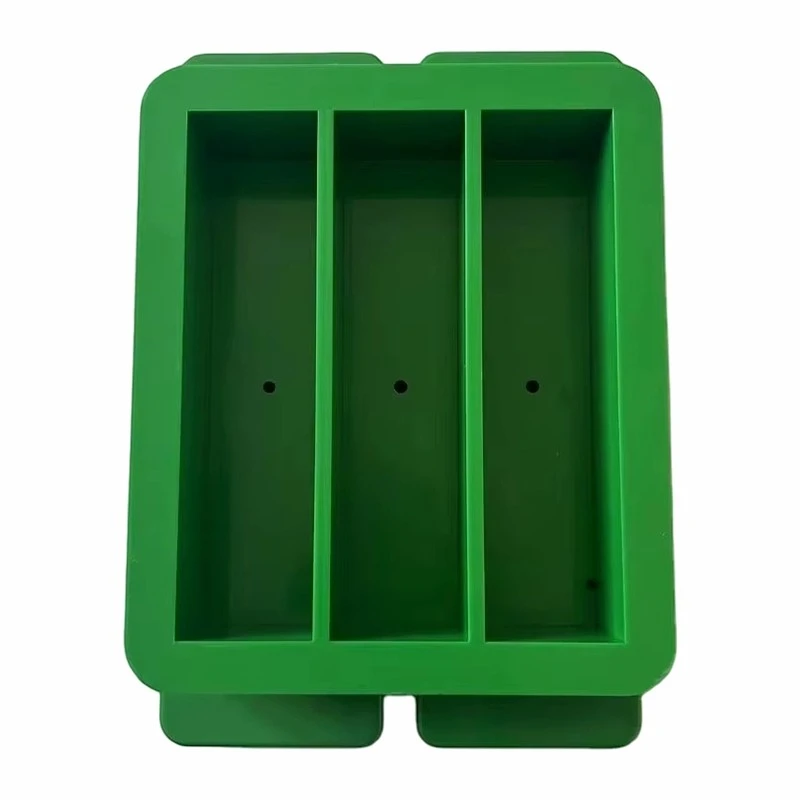

4. Multi-Cavity Customization: Single-gang, three-gang, six-gang integrated combined moulds for mass batch sampling.
5. Packaging Customization: Custom printed export cartons or wooden cases with your brand label for container bulk shipments.
Premium Shipping & After-Sales Brief
All moulds use shockproof bubble film + reinforced plywood wooden export packaging with desiccant for long sea transit. We offer 30-day free replacement for production defects, lifelong supply of matching release oil and cleaning tools at factory cost price.
FAQ
Q1: What Sizes Of Plastic Concrete Cube Moulds Are Available?
A: We have in-stock 100mm and 150mm standard compression cube moulds. We also support custom mortar moulds, flexural beam moulds and anti-permeability moulds according to your local test standards.
Q2: Is There Any Performance Difference Between Black And Green Plastic Test Moulds?
A: No. The two colors of moulds adopt the same ABS raw material, wall thickness, internal precision and production process, their service life and test performance are fully consistent. Only the outer surface color is different for convenient lab batch classification: black hides cement stains better for heavy daily use, green is easy to distinguish different test batches in curing rooms.
Q3: What Is The Difference Between ABS Plastic Mould And Cast Iron Test Mould?
A: ABS plastic mould is lightweight, low-cost and easy to demould, ideal for frequent batch sampling and field construction inspection. Cast iron mould has ultra-long service life for thousands of repeated tests, better suited for high-volume central testing laboratories.
Q4: Can I Customize My Brand Logo On The Surface Of The Mould?
A: Yes, logo printing or embossing service is supported for bulk orders. You just need to provide your brand graphic file before production.
Q5: Is This Plastic Mould Reusable? How To Extend Its Service Life?
A: It can be reused dozens of times. Wipe release oil before each pouring and rinse clean cement residue after demoulding, store in dry ventilated space to avoid direct sunlight for longer service life.
