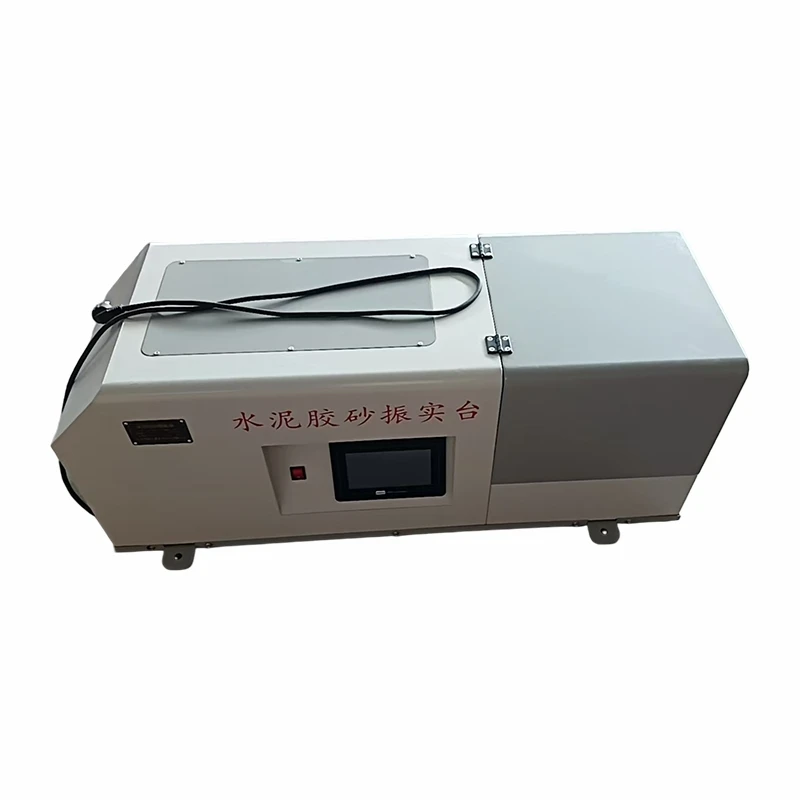

ZS-20H Cement Mortar Vibrating Table
Application & Scope
This cement mortar jolting table is developed in accordance with China's national testing standards for cement mortar strength and ISO 679 international standards. It fully complies with JC/T 682 Standard for Cement Mortar Specimen Forming Jolting Table. It is specially applied to prepare standard test specimens for cement compressive and flexural strength inspection in construction laboratories.

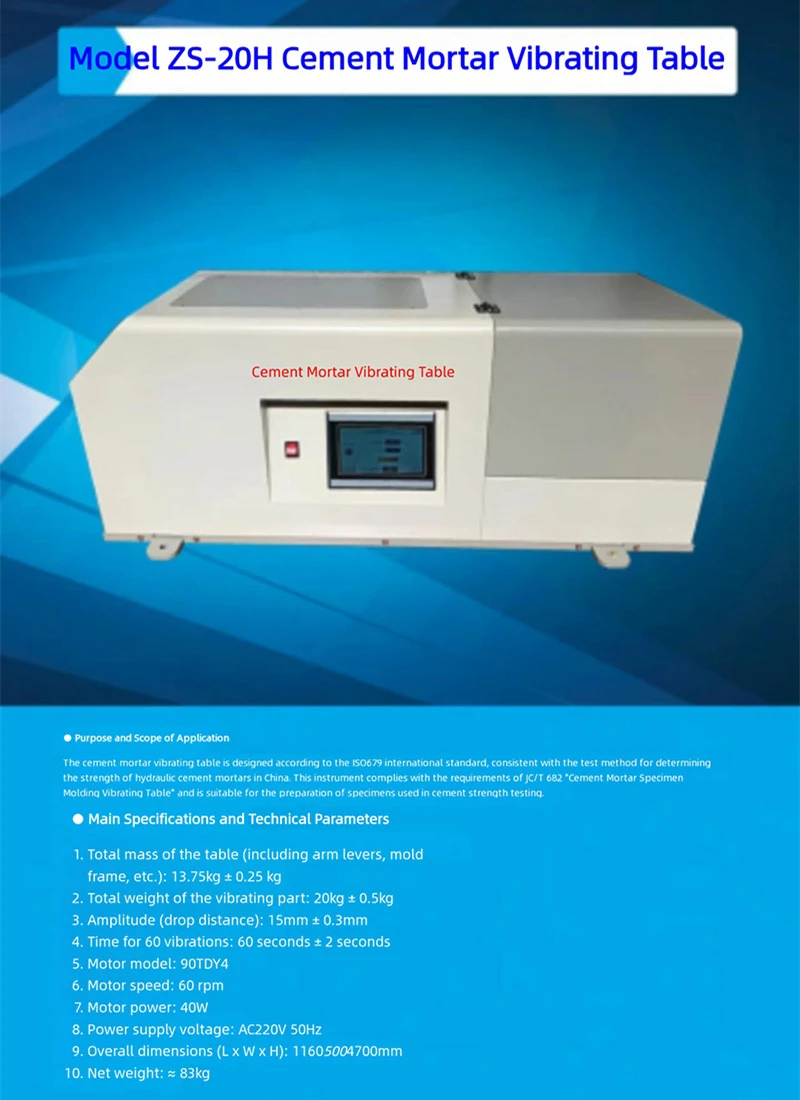

Main Specifications & Technical Parameters
- Total mass of table assembly (including arm frame & pressing mould frame): 13.75 kg ±0.25 kg
- Total mass of vibrating components: 20 kg ±0.5 kg
- Amplitude (drop height): 15 mm ±0.3 mm
- Time for 60 jolting cycles: 60 s ±2 s
- Motor model: 90TDY4
- Motor rotating speed: 60 r/min
- Motor power: 40 W
- Power supply: AC220V, 50Hz
- Overall dimensions (L×W×H): 1160×500×470 mm
- Net weight: approx. 83 kg
Key Features
Standard-compliant design: Manufactured to meet ISO 679 and JC/T 682 standards, compatible with global cement testing standards.
Precise jolting control: Fixed 15mm drop height and stable 60 cycles per minute, consistent compaction to eliminate internal air bubbles inside mortar samples.
Touchscreen intelligent control panel: Digital counting and timing function, automatically stops after completing 60 jolts, avoids manual operation errors.
Stable drive system: 40W low-noise synchronous motor with constant 60 rpm rotation, uniform vibration without amplitude deviation.
Rigid heavy-duty structure: Thickened steel cabinet with anti-rust coating, stable base to reduce vibration displacement during operation.
Perfect matching equipment: Matches cement mortar mixers and standard 40×40×160 test moulds as a complete cement testing lab set.
Low maintenance design: Simple mechanical structure, interchangeable spare parts for long-term laboratory frequent use.
Functional Description

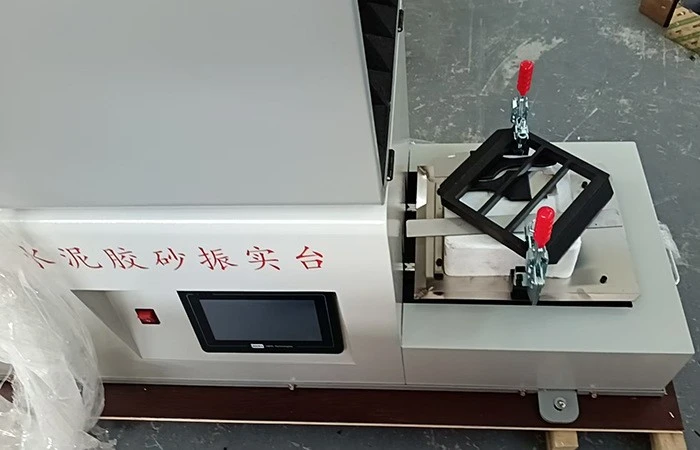

The ZS-20H cement mortar jolting table is specialized for forming standard cement mortar specimens. After mixing cement, sand and water evenly by mortar mixer, the filled test mould is fixed firmly on the table platform. Driven by the synchronous motor and cam transmission mechanism, the table lifts and drops repeatedly at fixed amplitude and frequency. The regular jolting process exhausts trapped air inside mortar and compacts specimens uniformly, ensuring identical density of every test piece. The built-in touchscreen controller accurately sets and records jolting cycles, automatically halting once 60 cycles are finished. It provides standardized forming conditions to guarantee repeatable, accurate flexural and compressive strength test data for cement quality inspection.
