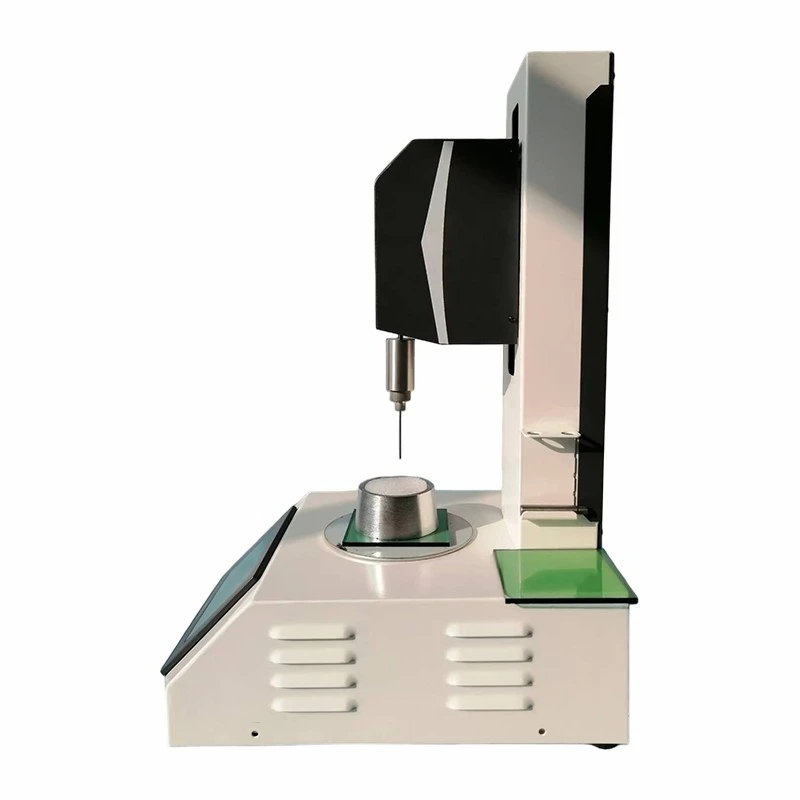

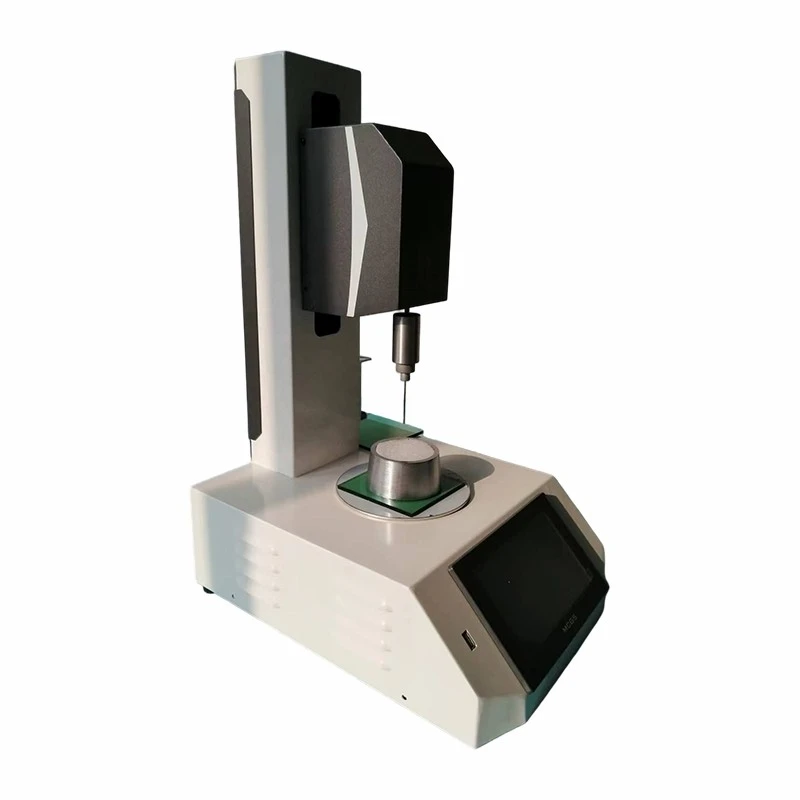

Automatic Cement Vicat Tester

Application & Usage

The automatic Vicat tester complies with GB/T 1346-2011, ISO and ASTM international standards, widely applied in cement factories, concrete mixing stations, construction engineering laboratories, third-party inspection institutions and building material research institutes.

Main Test Items

Measure the standard consistency water consumption of cement paste to confirm the proper water addition ratio for cement strength tests.

Automatically test initial setting time and final setting time of cement, evaluating cement hardening performance to guide construction schedule arrangement.

Operation Steps: Place the cement paste sample inside the stainless steel mold on the glass base plate, fix the test cone/test needle on the lifting spindle, set target test parameters via MCGS touch screen, then start one-click automatic testing. The machine will automatically control spindle descending, indentation measurement, data recording and spindle lifting after test completion. Test data and curves can be exported via the reserved USB port for lab report archiving.

Core Functional Features

Fully automatic intelligent operation: Electric precision lifting structure replaces manual operation, eliminates human operation errors and ensures consistent test results.

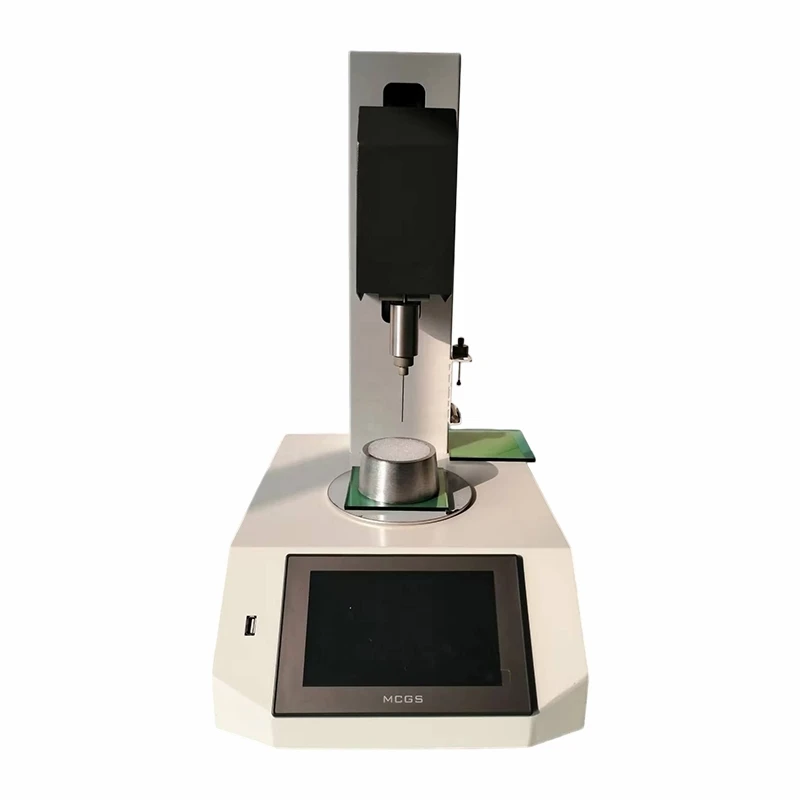

Industrial MCGS touch control panel: Clear real-time display of test progress, indentation depth, test duration and curve graphs; supports storage of hundreds of groups of historical test records.

Replaceable testing accessories: Match standard test cone for consistency test and Vicat needle for setting time detection, one machine realizes two core cement tests.

High-precision sensing system: Real-time depth sensing with micron-level accuracy, automatically judge initial/final setting points without manual observation.

USB data export function: Directly export all test data to U disk to generate standardized laboratory test reports, convenient for digital file management.

Stable integrated structure: Integrated vertical frame and anti-slip base platform, equipped with spare glass base plate for replacement, long-term stable operation without vibration deviation.

Wide adaptability: Adjustable test speed and dwell time, applicable to ordinary Portland cement, composite cement, slag cement and various hydraulic cementitious materials.

Premium Material Configuration

1. Host shell: High-strength cold-rolled steel with electrostatic spraying treatment, anti-corrosion, anti-rust, wear-resistant, long service life in humid laboratory environments.

2. Test mold, test cone, Vicat needle: High-hardness stainless steel, anti-oxidation, not easy to deform after repeated contact with cement slurry, meet national and international standard size tolerances.

3. Test base plate: High-transmittance toughened glass, smooth surface for easy cleaning of residual cement paste, no scratch interference to test readings.

4. Transmission spindle: Hardened alloy steel with low-friction silent slide rail, smooth lifting without jamming.

5. Control panel: Industrial MCGS capacitive touch screen, dust-proof and water-proof surface, sensitive touch response under long-time daily use.

Working Principle

The equipment adopts closed-loop precision electric drive and displacement sensing technology. After the cement paste sample is placed, the system drives the spindle with test cone/needle to descend at a constant standardized speed. The high-precision sensor captures the penetration depth into cement paste in real time.

● For standard consistency test: The machine records penetration depth under different water-cement ratios and automatically calculates the standard consistency water consumption that meets the standard indentation range.

● For setting time test: The machine performs periodic penetration detection. When the test needle can only indent a specified depth into the paste, the system automatically records the initial setting time; when the needle leaves no trace on the sample surface, the final setting time is confirmed. All test data is synchronously stored in the built-in memory, and users can view curves or export data through the touch screen and USB interface after testing.

FAQ

Q1: Which international standards does this automatic Vicat tester meet?

A: It fully complies with China GB/T 1346-2011, international ISO standard and American ASTM test standards, and can provide CE certification documents for customs clearance for overseas laboratories, inspection companies and engineering institutions.

Q2: Can This Machine Test Both Cement Consistency And Setting Time?

A: Yes. It is equipped with a complete set of standard test cone and Vicat test needle accessories. Just replace the accessories on the lifting spindle to switch between two test functions, one machine completes the two most essential cement physical property tests.

Q3: Is Professional Training Required To Operate The Equipment?

A: No complicated training is needed. The MCGS touch screen has built-in multi-language operation prompts and standard test procedure programs. Operators only need to place the cement sample and click the start button; the whole testing process runs fully automatically.

Q4: How To Save And Output The Test Experimental Data?

A: The tester has built-in large-capacity storage to save hundreds of groups of test data and curves. There is a reserved USB port on the left side of the host. Insert a U disk to export all records at one time to make formal laboratory inspection reports.

Q5: What Are The Wearing Parts Of The Machine And Is It Easy To Replace Accessories?

A: Consumable accessories include stainless steel test cone, Vicat needle and toughened glass base plate. All standard accessories are in universal sizes, we supply spare parts together with the machine, and users can disassemble and replace them without professional tools within 1 minute.
