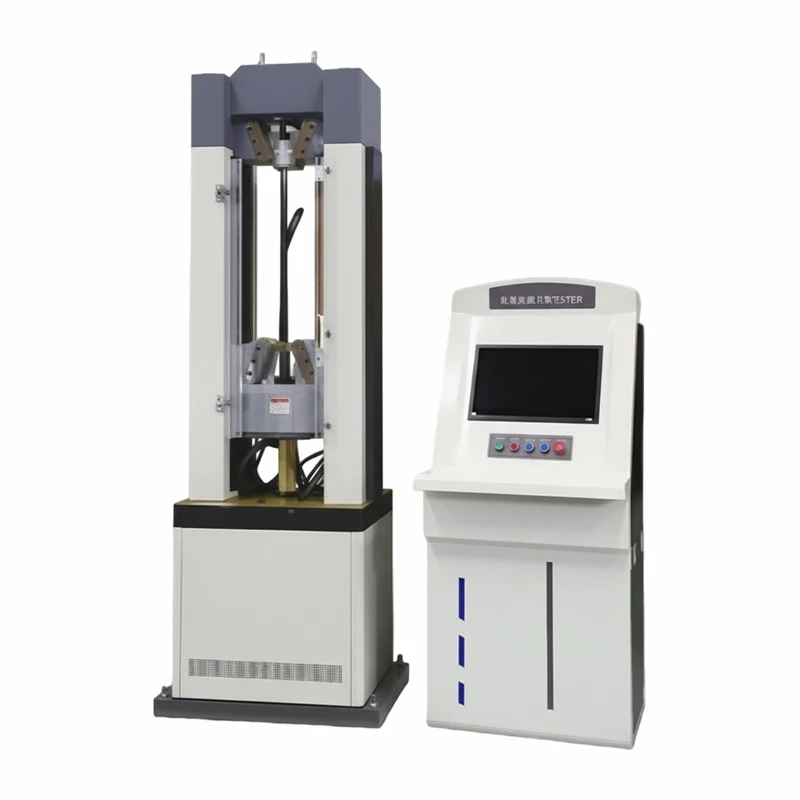

Steel Strand Tensile Testing Machine
High-Precision Steel Strand Tensile Testing Machine for Prestressed Steel Testing
The Steel Strand Tensile Testing Machine is specifically designed to evaluate the tensile performance of prestressed steel strands, steel wires, and high-strength steel cables. It provides accurate measurements of tensile strength, yield strength, elongation, breaking force, and other key mechanical properties required for quality control and product certification.
With advanced servo control technology, heavy-duty gripping systems, and intelligent testing software, the machine ensures stable loading, precise data acquisition, and reliable testing results that comply with international testing standards.
Applications
The Steel Strand Tensile Testing Machine is widely used for mechanical testing of high-strength steel products in construction and industrial applications.
Typical testing materials include:
* Prestressed concrete steel strands (PC Strand)
* Prestressed steel wire
* High-strength steel wire
* Steel cables
* Bridge cables
* Steel rods
* Reinforcing steel bars (optional fixtures)
* Metal wire ropes
Industries served:
* Prestressed Steel Manufacturers
* Construction Material Factories
* Bridge Engineering
* Railway Construction
* Highway Projects
* Quality Inspection Laboratories
* Universities & Research Institutes
* Third-party Testing Organizations
Material Selection
Premium components are selected to ensure durability, testing accuracy, and long service life.
Heavy-duty Load Frame
* High-strength welded steel construction
* High rigidity with minimal deformation
* Suitable for high-capacity tensile testing
01
Precision Servo Drive System
* AC servo motor
* Stable loading speed
* Accurate displacement control
* Low-noise operation
02
High-Strength Grips
* Specially designed wedge grips for steel strands
* High clamping force
* Anti-slip design
* Easy specimen installation
03
High-Precision Sensors
* Imported load cell
* High-resolution displacement encoder
* Stable long-term measurement performance
04
Working Principle
The Steel Strand Tensile Testing Machine clamps the steel strand specimen securely using dedicated wedge grips. A servo-driven or electro-hydraulic loading system applies tensile force at a controlled rate while maintaining stable loading throughout the test.
During testing, the load cell continuously measures force, while the displacement system records specimen elongation. The intelligent software automatically analyzes the data and calculates:
* Ultimate Tensile Strength (UTS)
* Yield Strength
* Maximum Load
* Elongation
* Breaking Force
* Elastic Modulus (optional)
The complete testing process is displayed in real time, and professional reports are generated automatically.
Key Features
High Testing Accuracy
* Force accuracy up to ±0.5% or ±1%
* Stable repeatability
* Reliable measurement under high loads
Designed for High-Strength Steel Strands
* Dedicated anti-slip wedge grips
* Suitable for large-diameter PC strands
* High-capacity loading system
* Stable gripping throughout the test
Intelligent Testing Software
* Automatic testing procedures
* Real-time force-displacement curves
* Automatic calculations
* Data storage and retrieval
* Excel and PDF report export
* Multi-language interface (optional)
Wide Capacity Options
Available testing capacities include:
* 300 kN
* 600 kN
* 1000 kN
* 1200 kN
* 2000 kN
Custom capacities are available for special applications.
Comprehensive Safety Protection
* Overload protection
* Emergency stop function
* Travel limit protection
* Sensor overload alarm
* Automatic fault diagnosis
Easy Maintenance
* Modular mechanical structure
* Easy grip replacement
* Simple calibration process
* Low maintenance cost
* Long service life
Customization Service
We provide flexible OEM and ODM solutions to meet different testing requirements.
Customization options include:
* Testing capacity
* Grip type and size
* Software language
* Testing standards
* Voltage and power supply
* Servo or electro-hydraulic control system
* Machine color
* Company logo
* Customized testing reports
* Automatic data management functions
Quality Inspection
Every Steel Strand Tensile Testing Machine undergoes strict quality inspection before shipment.
Inspection procedures include:
* Load cell calibration
* Grip performance verification
* Servo control testing
* Full-load operation testing
* Software function inspection
* Factory acceptance testing
Each machine is supplied with calibration certificates, inspection reports, and operation manuals.
Packaging & Logistics
Professional export packaging ensures safe transportation worldwide.
Packaging includes:
* Anti-rust protection
* Waterproof wrapping
* Shockproof foam cushioning
* Fumigation-free plywood case
* Reinforced export packaging
Shipping options:
* Sea Freight
* Air Freight
* Railway Transportation
* International Express
After-sales Service
We provide comprehensive technical support throughout the machine's service life.
Our services include:
* Installation guidance
* Remote technical support
* Operator training
* Software updates
* Spare parts supply
* Preventive maintenance guidance
* One-year warranty
* Lifetime technical support
Company Profile
Hebei Wanluda Test Instrument & Equipment Co., Ltd. specializes in test instrument manufacturing. We are a modern integrated enterprise covering independent R&D, production, global sales and full after-sales services. Backed by outstanding technical strength and abundant industry experience, Wanluda delivers premium, diversified testing equipment and customized total solutions for clients worldwide. Our instruments are widely deployed in research institutes, industrial inspection labs, as well as highway, railway, bridge, construction, municipal, water conservancy, power, environmental protection and geological exploration sectors. Centered on customer demands, we keep technological innovation and strive to build a leading brand within the testing equipment industry.
Our advantages include:
* Experienced R&D and engineering team
* Modern CNC machining and assembly facilities
* Strict ISO quality management system
* OEM & ODM manufacturing capability
* Global export experience
* Fast production and delivery
* Professional technical consulting and after-sales support
Our products are exported to customers across Europe, North America, Southeast Asia, the Middle East, Africa, and South America.
Frequently Asked Questions (FAQ)
Q1: What materials can the Steel Strand Tensile Testing Machine test?
A: The machine is primarily designed for prestressed concrete steel strands (PC strands), prestressed steel wire, high-strength steel wire, bridge cables, steel ropes, and other high-tensile metallic materials. Optional fixtures also allow testing of steel bars and rods.
Q2: What testing standards does the machine support?
A: The machine can be configured to comply with international standards such as ASTM, ISO, EN, BS, JIS, and GB, depending on your testing requirements and local regulations.
Q3: Can the machine be customized?
A: Yes. We offer customized testing capacities, grip systems, software languages, testing standards, voltage configurations, OEM branding, and special fixtures to meet your application needs.
Q4: How should the machine be maintained?
A: Regular maintenance includes inspecting the gripping system, calibrating the load cell, lubricating moving components, checking electrical connections, and performing periodic software and mechanical inspections to ensure long-term testing accuracy.
Q5: What warranty and after-sales support do you provide?
A: We provide a 12-month warranty, lifetime technical support, remote troubleshooting, software upgrades, spare parts supply, installation guidance, and operator training for reliable long-term operation.
Q6: Does the machine include professional testing software?
A: Yes. The machine is equipped with intelligent testing software that supports real-time data acquisition, automatic calculation of tensile properties, curve analysis, report generation, historical data management, and export in Excel or PDF formats, helping laboratories improve testing efficiency and data traceability.
