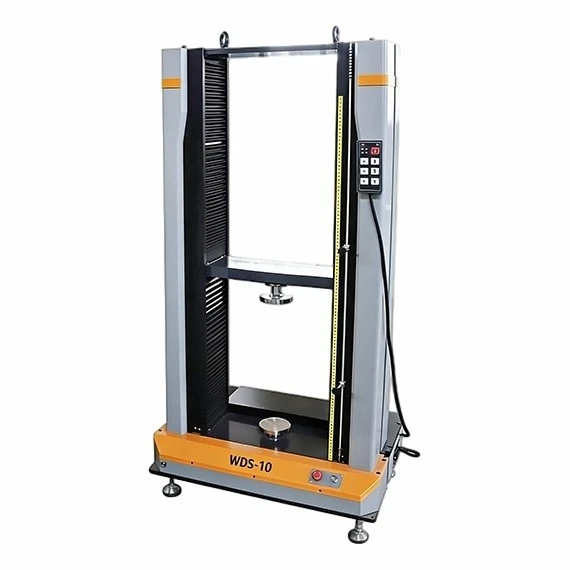

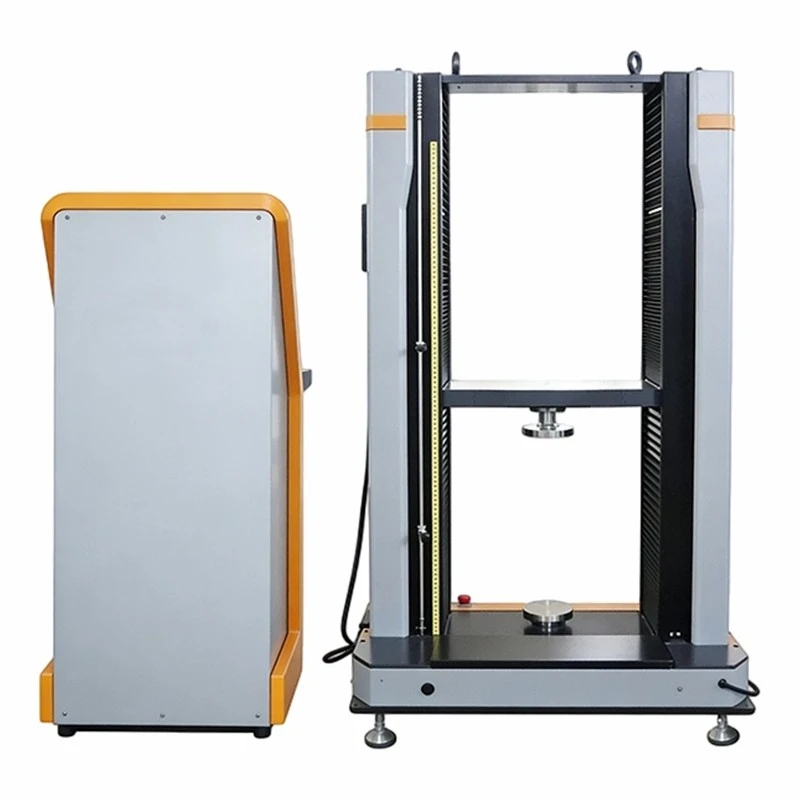

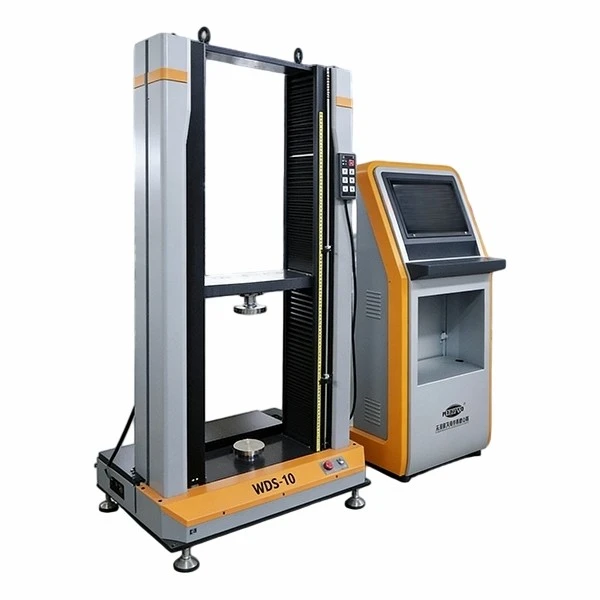

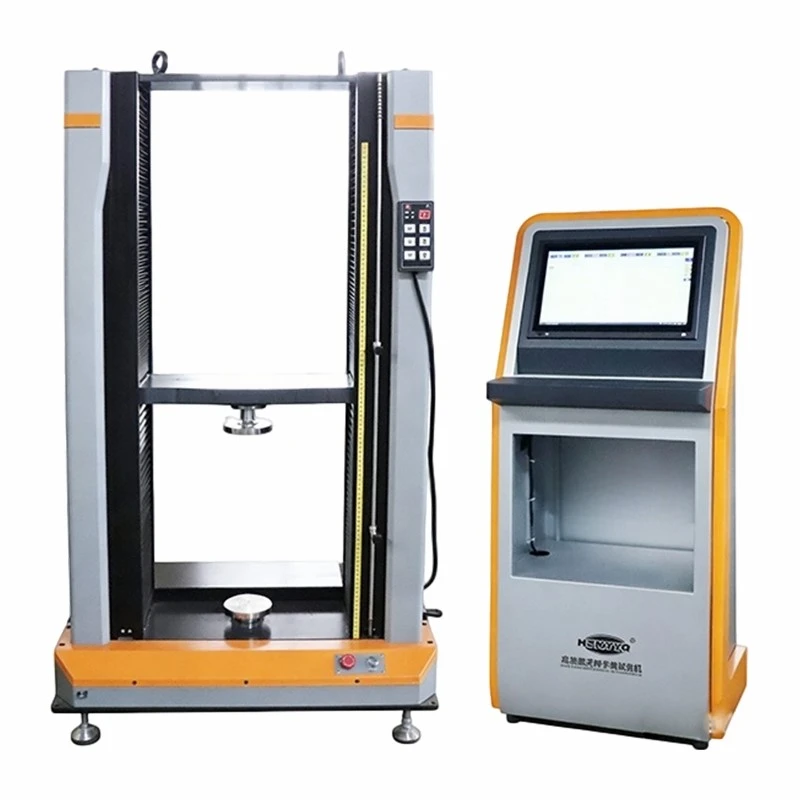

Universal Material Testing Machine
High-Precision Universal Material Testing Machine for Comprehensive Material Strength Analysis
The Universal Material Testing Machine (UTM) is a versatile testing system designed to evaluate the mechanical properties of metallic and non-metallic materials under tensile, compression, bending, shear, peel, and other loading conditions. Combining precision load measurement, advanced servo control, and intelligent testing software, the machine provides reliable and repeatable results for quality control, product development, and research.
It is widely used in construction, metallurgy, automotive, aerospace, plastics, rubber, textile, electronics, universities, and third-party testing laboratories to ensure materials comply with international quality standards.
Applications
The Universal Material Testing Machine is suitable for testing a wide range of materials and finished products.
Typical testing materials include:
* Steel and stainless steel
* Aluminum and copper alloys
* Reinforcing steel bars (Rebar)
* Prestressed steel strands
* Metal plates and pipes
* Plastic materials
* Rubber products
* Composite materials
* Textile fabrics
* Geotextiles
* Paper and packaging materials
* Adhesives
* Springs
* Wire and cable
* Fasteners
* Medical materials
* Building materials
Testing functions include:
* Tensile Testing
* Compression Testing
* Bending Testing
* Shear Testing
* Peel Testing
* Tear Testing
* Adhesion Testing
* Cyclic Testing (Optional)
Industries served:
* Construction Engineering
* Metal Manufacturing
* Automotive Industry
* Aerospace
* Electronics Manufacturing
* Plastic & Rubber Industry
* Textile Industry
* Universities & Research Institutes
* Third-party Testing Laboratories
* Government Quality Inspection Centers
Material Selection
The machine is built using premium industrial components to ensure long-term durability, high accuracy, and reliable performance.
Heavy-duty Load Frame
* High-strength welded steel frame
* High rigidity with minimal deformation
* Stable performance under continuous testing
* Long service life
01
Precision Servo Drive System
* AC servo motor
* High-precision ball screw transmission
* Stable loading speed
* Low vibration and low noise
02
High-Accuracy Load Cell
* Imported load sensor
* High-resolution force measurement
* Excellent repeatability
* Long-term stability
03
Precision Fixtures
Various interchangeable fixtures are available for different testing applications, including:
* Tensile grips
* Compression platens
* Three-point bending fixtures
* Four-point bending fixtures
* Peel fixtures
* Shear fixtures
* Special custom fixtures
04
Working Principle
The Universal Material Testing Machine applies a controlled load to a test specimen using either a servo motor-driven ball screw system or an electro-hydraulic servo actuator, depending on the model.
During testing, the load cell continuously measures the applied force while the displacement encoder records crosshead movement. Optional extensometers provide accurate strain measurements. The intelligent testing software collects and analyzes all data in real time to calculate key mechanical properties, including:
* Tensile Strength
* Yield Strength
* Compression Strength
* Elastic Modulus
* Elongation
* Breaking Force
* Bending Strength
* Shear Strength
The software automatically generates real-time curves, test reports, and data records for quality control and traceability.
Key Features
High Testing Accuracy
* Force accuracy up to ±0.5% or ±1%
* Excellent repeatability
* High-resolution displacement measurement
* Stable long-term performance
Comprehensive Safety Protection
* Overload protection
* Emergency stop button
* Travel limit protection
* Automatic fault diagnosis
* Sensor overload protection
* Power failure protection
Easy Maintenance
* Modular mechanical structure
* Easy fixture replacement
* Simple calibration process
* Low maintenance requirements
* Long equipment lifespan
Multiple Testing Functions
Supports:
* Tensile Test
* Compression Test
* Bending Test
* Shear Test
* Peel Test
* Tear Test
* Adhesion Test
* Cyclic Loading (Optional)
Intelligent Control System
* Automatic testing procedures
* Closed-loop control
* Real-time force-displacement curves
* Automatic calculations
* Historical data storage
* One-click report generation
* Excel, PDF, and printable reports
* Multi-language interface
Wide Capacity Range
Available testing capacities include:
* 5 kN
* 10 kN
* 20 kN
* 50 kN
* 100 kN
* 300 kN
* 600 kN
* 1000 kN
* 2000 kN
Higher capacities are available upon request.
Customization Service
We provide complete OEM and ODM services to meet different testing applications and industry requirements.
Customization options include:
* Testing capacity
* Load frame configuration
* Servo or hydraulic control system
* Fixture design
* Extensometers
* Testing software language
* Testing standards
* Voltage and frequency
* Company logo
* Machine color
* Customized testing reports
* Laboratory information management (LIMS) integration
Quality Inspection
Every Universal Material Testing Machine undergoes rigorous inspection before shipment.
Inspection procedures include:
* Load cell calibration
* Displacement accuracy verification
* Servo system testing
* Mechanical alignment inspection
* Software function verification
* Full-load operation testing
* Factory acceptance inspection
Each machine is supplied with calibration certificates, quality inspection reports, and complete operation manuals.
Packaging & Logistics
Professional export packaging ensures safe delivery worldwide.
Packaging includes:
* Anti-rust treatment
* Waterproof protective film
* Shockproof foam cushioning
* Fumigation-free plywood case
* Reinforced export packaging for heavy-duty models
Shipping methods:
* Sea Freight
* Air Freight
* Railway Transportation
* International Express
After-sales Service
We provide comprehensive technical support throughout the equipment lifecycle.
Our services include:
* Installation guidance
* Online technical support
* Remote troubleshooting
* Software upgrades
* Operator training
* Spare parts supply
* Preventive maintenance guidance
* One-year warranty
* Lifetime technical support
About Our Company
As a professional manufacturer of material testing equipment, we are committed to delivering accurate, durable, and innovative testing solutions for laboratories and industrial manufacturers worldwide.
Our advantages include:
* Experienced R&D and engineering team
* Modern CNC machining and manufacturing facilities
* Strict ISO quality management system
* Advanced calibration equipment
* OEM & ODM manufacturing capability
* Extensive international export experience
* Fast production and delivery
* Professional pre-sales consultation and after-sales support
Our testing equipment is trusted by customers in construction, metallurgy, automotive, aerospace, universities, quality inspection agencies, and manufacturing industries across Europe, North America, Southeast Asia, the Middle East, Africa, and South America.
Frequently Asked Questions (FAQ)
Q1: What materials can the Universal Material Testing Machine test?
A: The machine can test metals, plastics, rubber, composites, textiles, paper, adhesives, wire, cables, fasteners, springs, construction materials, medical materials, and many other products using appropriate fixtures.
Q2: Which testing standards does the machine comply with?
A: The machine can be configured to comply with major international standards, including ASTM, ISO, EN, DIN, JIS, BS, and GB, depending on your industry and testing requirements.
Q3: Can the Universal Material Testing Machine be customized?
A: Yes. We provide customized testing capacities, fixtures, extensometers, software languages, testing standards, voltage configurations, machine colors, OEM branding, and specialized testing solutions based on customer requirements.
Q4: How should the machine be maintained?
A: Regular maintenance includes cleaning the machine after use, lubricating moving components, inspecting the drive system, calibrating the load cell and extensometer periodically, and updating the testing software to maintain optimal performance and accuracy.
Q5: What warranty and after-sales support do you provide?
A: We provide a 12-month warranty, lifetime technical support, remote diagnostics, software upgrades, spare parts supply, installation guidance, and operator training to ensure reliable long-term operation.
Q6: Does the machine include professional testing software?
A: Yes. The machine includes intelligent testing software that supports automatic test control, real-time curve display, mechanical property analysis, report generation, historical data management, and export in Excel, PDF, and other common formats, helping laboratories improve efficiency, consistency, and data traceability.
