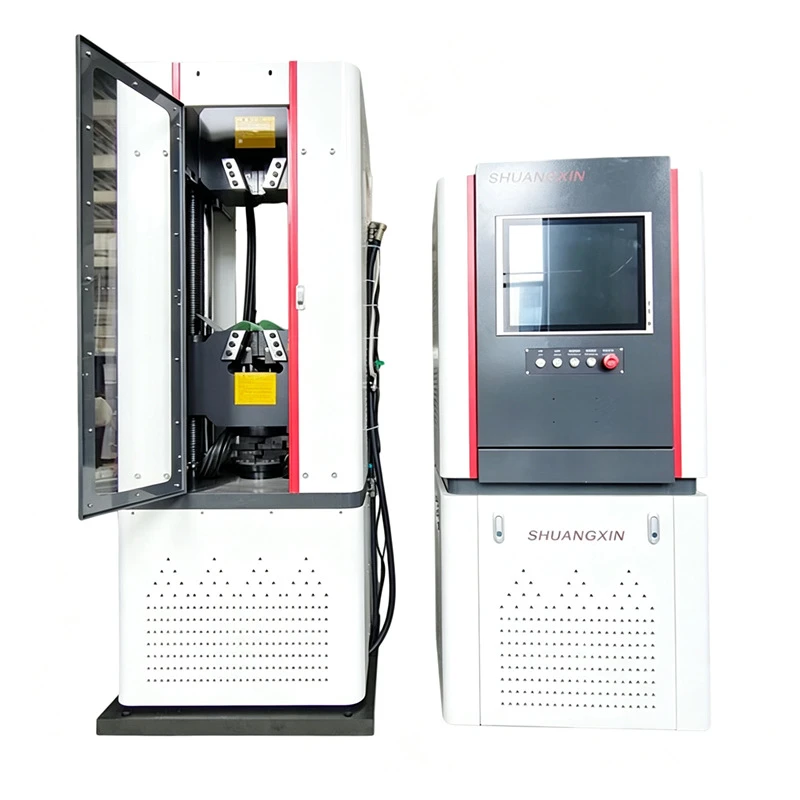

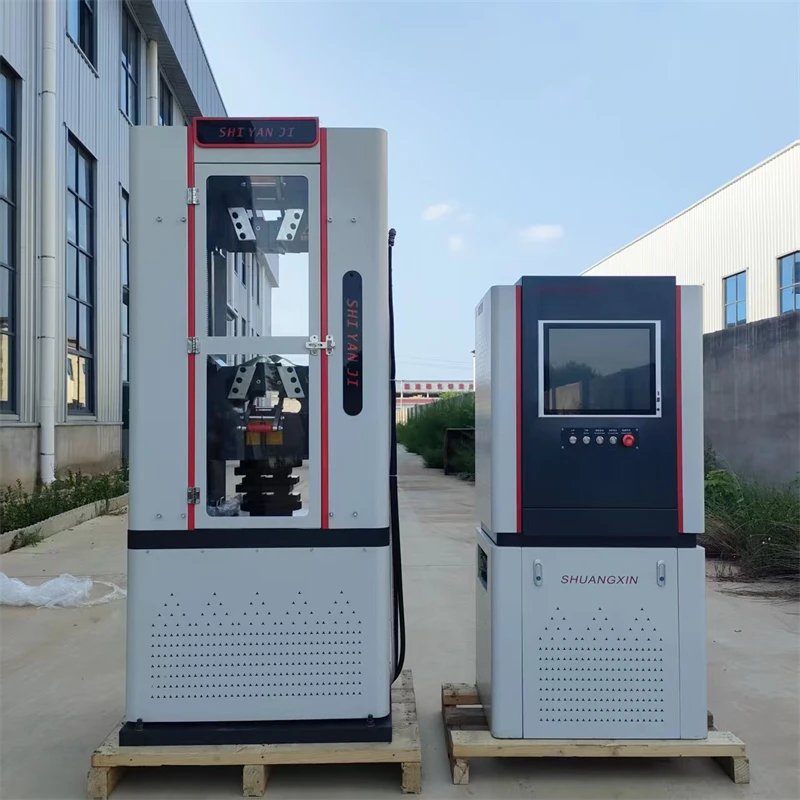

Computer controlled universal testing machine
Product Overview
The computer controlled universal testing machine adopts independent touch screen electronic control system, fully enclosed safety protective structure, which is the core testing equipment for metal and building material mechanical performance inspection. It complies with global mainstream test standards, widely exported to Southeast Asia, Middle East, Africa and other markets, favored by third-party laboratories, construction inspection institutions, metal processing factories and university research labs.
Wide Application Scenarios
Construction & Building Materials Testing
- Tensile, bending, compression test for rebar, round steel, steel bar welded joints, steel wire and steel strand.
- Compression and flexural test for cement, concrete test blocks, masonry materials.
- Mechanical inspection for building fasteners, metal connectors, steel structure accessories.
Metal Manufacturing Industry
- Tensile, yield, elongation, shear test for carbon steel, aluminum alloy, copper plate, stainless steel.
- Quality inspection of bolts, nuts, rivets and various hardware fasteners.
Research & Education & Third-Party Labs
- Material mechanics teaching experiments for civil engineering, material science majors.
- Standard sample testing for third-party inspection organizations.
- New material R&D performance verification for factories and research institutes.
Core Functional Features

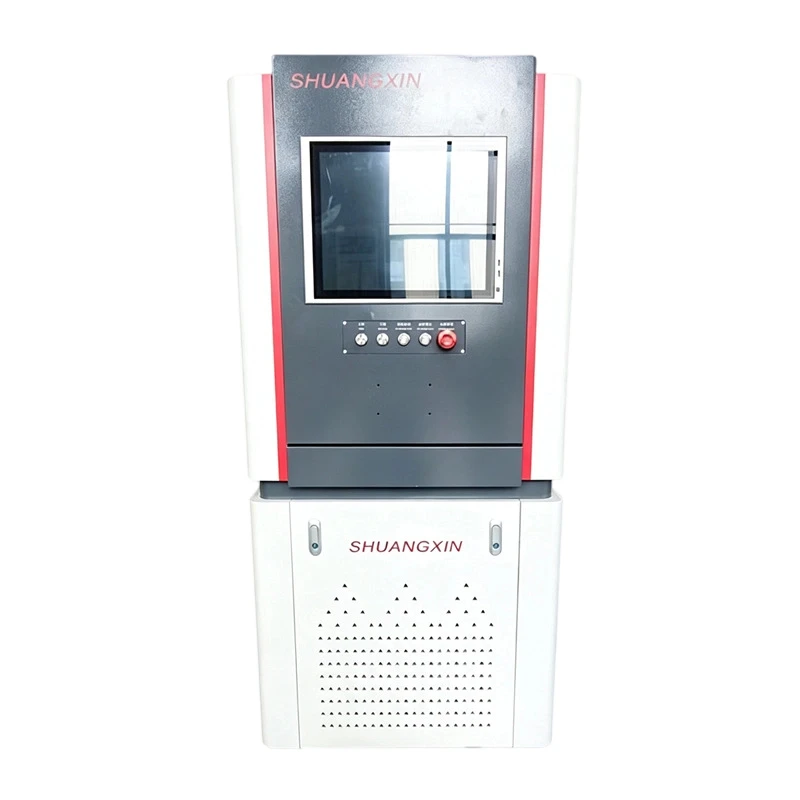

1. Split Independent Electronic Control System: Separate host and control cabinet design, effectively isolate hydraulic oil pollution and mechanical vibration interference. 10-inch industrial touch screen realizes one-click parameter setting, real-time data display, curve drawing and automatic report generation. Independent servo control module ensures stable signal collection with 0.5 high precision grade.
2. Full Enclosed Safety Protection Chamber: Equipped with transparent tempered glass safety door. When metal specimens break during tension test, the cabinet blocks splashing fragments to avoid operator injury, fully meeting international laboratory safety standards.
3. Multi Test Modes Integrated: Support tensile, compression, bending, shear, peeling and cyclic loading tests. One machine completes all conventional mechanical performance tests of rigid materials. Automatically calculate yield strength, tensile strength, breaking elongation, compressive strength and other core indicators.
4. High Precision Detection Components: Adopt high-stability load sensor and grating displacement measuring device, low error, strong anti-interference ability. Data storage capacity supports thousands of test records for traceability and reprinting test reports at any time.
5. Stable Hydraulic Loading Structure: High-power servo hydraulic drive, smooth loading speed, adjustable loading rate according to different national test standards (GB, ASTM, ISO, EN etc.), no impact during force rise and fall.
6. Humanized Operation Design: Physical control buttons + emergency stop button on the control panel; ventilated heat dissipation cabinet to reduce equipment overheating; quick-change fixture structure to save specimen replacement time.
Working Principle

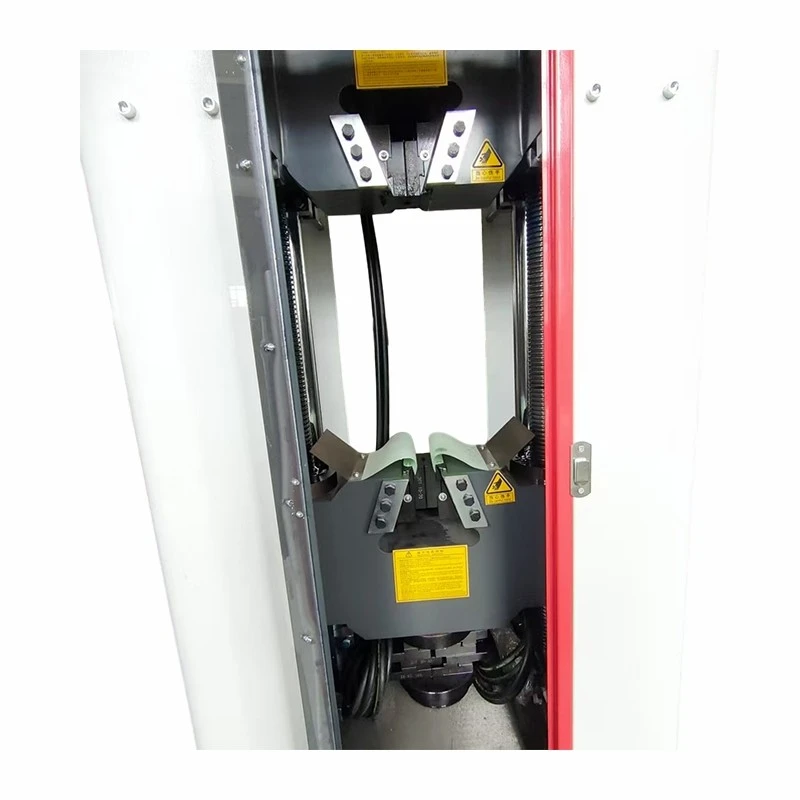

1. Specimen clamping: Fix the test sample between upper and lower hydraulic fixtures of the main frame, close the safety protective door.
2. Parameter setting: On the touch screen control cabinet, select the corresponding test standard, input specimen size, set loading speed and test stop conditions.
3. Servo hydraulic driving: The electronic control system sends instructions to the servo hydraulic station, driving the main oil cylinder to apply tensile or compressive force to the specimen at constant speed.
4. Real-time data collection: The load sensor captures force value data, the grating ruler records displacement change, the system synchronously draws force-displacement & stress-strain curves.
5. Automatic judgment & report output: When the specimen breaks or reaches the set load limit, the machine automatically stops loading. The system computes all mechanical performance data and generates printable PDF/Excel test reports.
Customization Support
We provide full personalized customization services to match global customers' different testing demands:
1. Load range customization: 300kN / 600kN / 1000kN / 2000kN optional for different test loads.
2. Fixture customization: Special fixtures for steel strand, thin metal sheet, cement bending test, custom clamping molds for special-shaped workpieces.
3. System language customization: English, Spanish, Arabic, French multi-language touch screen operating system for regional markets.
4. Standard program customization: Pre-install built-in test programs for ASTM, ISO, EN, BS, local national building material standards.
5. Appearance & structure customization: Adjust cabinet color, equipment size, add mobile base, dust-proof and waterproof structure for harsh workshop environment.
6. Software function customization: Custom test report template, remote data transmission, multi-user data management system.
Premium After-Sales Service
1. Global 12-month full machine warranty: Free replacement of damaged core electrical and hydraulic parts within warranty period (excluding human-induced damage and wearing fixtures).
2. Remote online technical support: 24-hour online engineer team via video call to solve operation error, parameter setting and software failure problems.
3. Overseas door-to-door service: Cooperate with local maintenance partners in main export countries; arrange professional engineers for on-site installation, commissioning and training for bulk orders.
4. Free training resources: Provide English operation manual, operation video, test standard tutorial, free remote operation training for your technicians.
5. Lifelong cost-price maintenance: After warranty expires, we supply all spare parts at factory cost price, permanent technical consultation without extra fees.
6. Complete accessory supply: Long-term supply of fixtures, sensors, hydraulic oil, seals and other consumables to ensure long-term machine operation.
FAQ
Q1: What Materials Can This Universal Testing Machine Test?
A: It is mainly suitable for rigid high-load materials such as various steel rebar, metal plates, cement concrete, building fasteners. It is not recommended for soft materials like plastic and rubber; we can provide small electronic universal testing machines specially for flexible materials if needed.
Q2: Which International Test Standards Does The Machine Support?
A: The system is pre-installed with mainstream standards including GB, ISO, ASTM, EN, BS. We can customize local national standard test programs according to your country's inspection requirements before shipment.
Q3: Can The Machine Export Test Data And Print Reports?
A: Yes. The built-in control system supports automatic curve drawing, data storage, and can export test results as Excel and PDF files. It can connect with office printers to print formal inspection reports directly.
Q4: Do You Provide Overseas Installation And Training Service?
A: For bulk container orders, we will arrange professional engineers to your factory for on-site installation, commissioning and operator training. For small single-unit orders, we provide full set of English operation videos and one-on-one remote video guidance free of charge.
Q5: Is Multi-Language Operating System Available For Regional Markets?
A: Definitely. We support custom touch screen languages such as English, Spanish, Arabic, Russian and French. You can inform us your target market language when placing orders, and we will pre-install the corresponding language system before delivery.
Company Profile
Hebei Wanluda Test Instrument & Equipment Co., Ltd. specializes in test instrument manufacturing. We are a modern integrated enterprise covering independent R&D, production, global sales and full after-sales services. Backed by outstanding technical strength and abundant industry experience, Wanluda delivers premium, diversified testing equipment and customized total solutions for clients worldwide. Our instruments are widely deployed in research institutes, industrial inspection labs, as well as highway, railway, bridge, construction, municipal, water conservancy, power, environmental protection and geological exploration sectors. Centered on customer demands, we keep technological innovation and strive to build a leading brand within the testing equipment industry.
