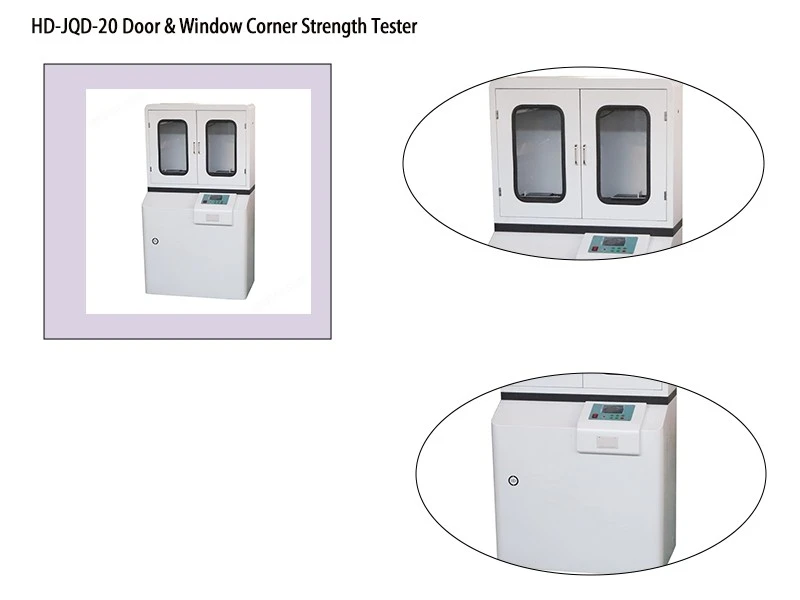

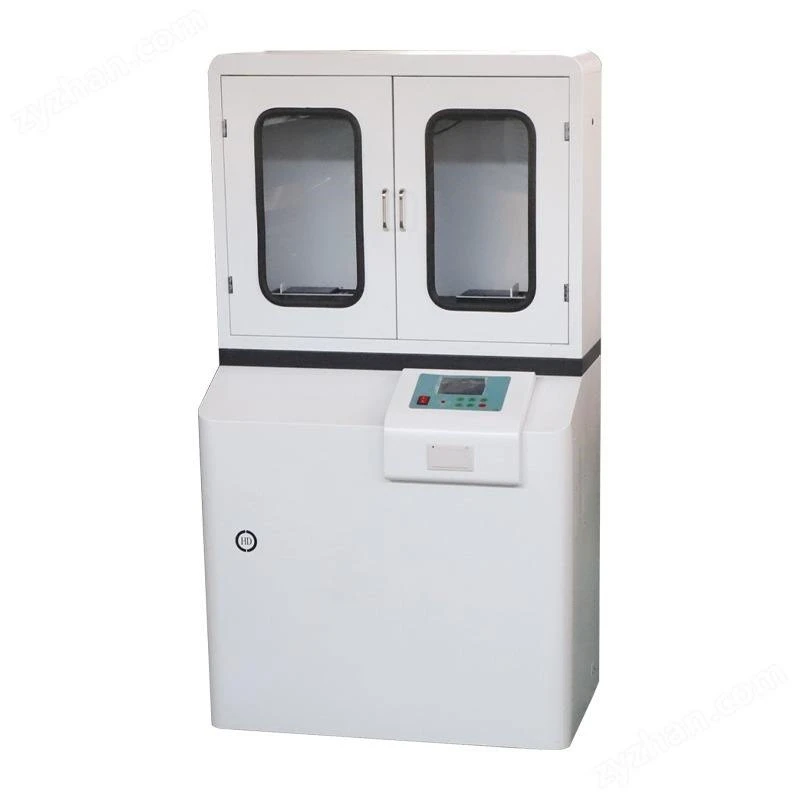

Weld Corner Strength Testing Machine
Window & Door Corner Joint Strength Tester. Weld Corner Strength Testing Machine Overview.

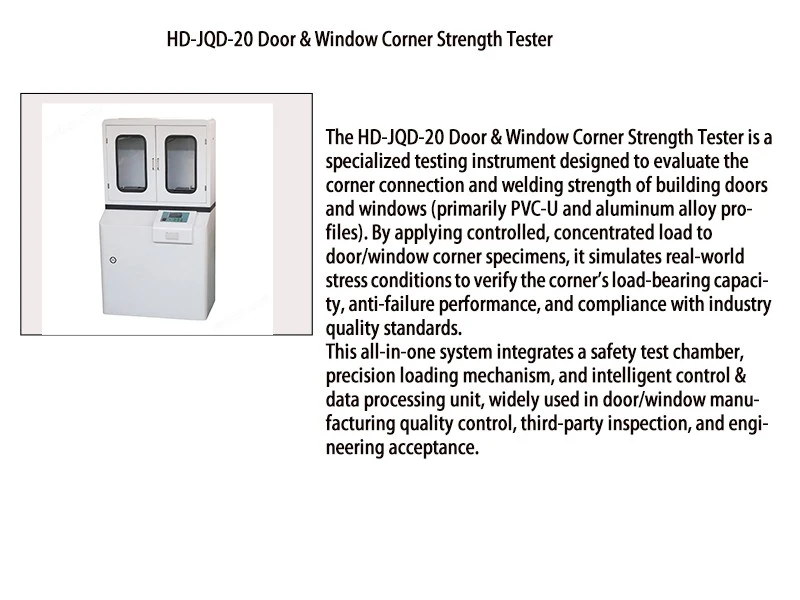

The Weld Corner Strength Testing Machine is a professional testing system designed to evaluate the welded corner strength of PVC, uPVC, vinyl and plastic window and door frames. It accurately measures the maximum force that welded corner joints can withstand before failure, ensuring product quality, structural integrity and compliance with international standards.
The equipment is widely used by window and door manufacturers, quality inspection laboratories, building material testing centers and research institutes for production quality control and product certification.
Applications
The Weld Corner Strength Testing Machine is suitable for testing a wide range of welded frame products, including:
* uPVC Window Frames
* PVC Window Frames
* Vinyl Window Frames
* PVC Door Frames
* Plastic Profile Corner Joints
* Window Sash Frames
* Door Sash Frames
* Welded Plastic Building Components
* Construction Profiles
* Building Envelope Systems
Widely used in:
* Window & Door Manufacturing Plants
* Building Material Laboratories
* Quality Inspection Centers
* Third-party Testing Laboratories
* Universities & Research Institutes
* Building Product Certification Agencies
* Construction Material Manufacturers
Material Selection
The machine is manufactured using high-quality materials to ensure precision, durability and long service life.
Heavy-duty Steel Frame
* High structural rigidity
* Excellent load-bearing capacity
* Powder-coated anti-corrosion finish
* Stable operation under high loads
01
Precision Alloy Steel Loading Components
* High strength
* Wear resistant
* Accurate force transmission
* Long service life
02
Industrial-grade Hydraulic or Servo System
* Smooth loading process
* Stable force control
* High repeatability
* Low maintenance
03
High-precision Load Cell
* Accurate force measurement
* Fast response
* Stable long-term performance
* Excellent repeatability
04
Working Principle
The Weld Corner Strength Testing Machine applies a controlled compressive or tensile force to the welded corner joint of a window or door frame specimen until failure occurs.
Testing procedure:
- Prepare the welded corner specimen according to the testing standard.
- Secure the specimen using the adjustable fixture.
- Set the required loading speed and testing parameters.
- Apply force continuously through the hydraulic or servo loading system.
- Record the maximum breaking force, displacement and deformation.
- Automatically generate the test report and evaluate weld corner strength.
The results help manufacturers optimize welding quality, improve production processes and verify compliance with quality standards.

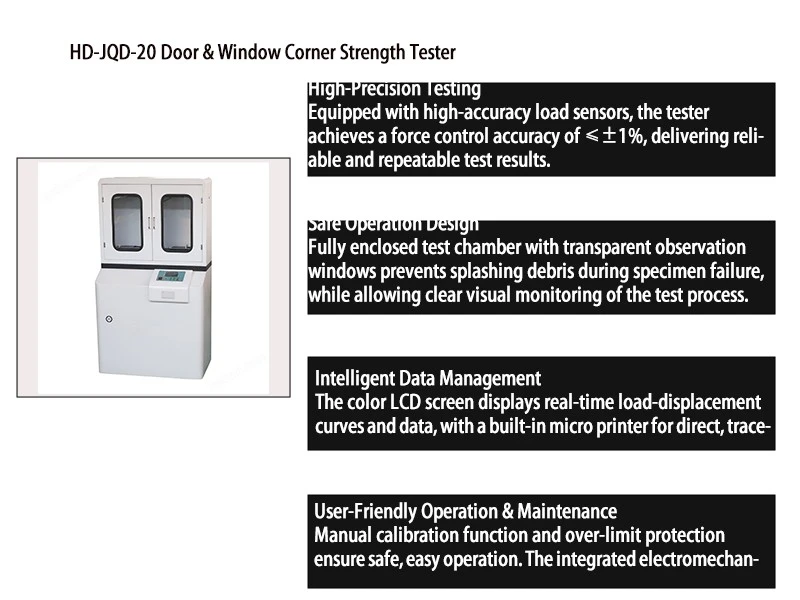

Product Features
High Testing Accuracy: Equipped with a high-precision load cell to ensure reliable and repeatable testing results.
Servo or Hydraulic Loading System: Provides stable loading speed and precise force control throughout the testing process.
Intelligent Control System: PLC or computer-controlled operation supports automatic testing, real-time monitoring and report generation.
Adjustable Fixtures: Compatible with different window and door profile sizes for versatile testing applications.
Real-time Data Display: Displays force, displacement, testing curve and peak load during the entire testing process.
Durable Construction: Heavy-duty frame and precision components ensure long-term stability in industrial laboratories.
User-friendly Software: Professional software supports automatic calculations, report generation, data storage and export.
Product Advantages
* High measurement accuracy
* Stable loading performance
* Automatic data acquisition
* Real-time force-displacement curve
* Easy specimen installation
* Wide compatibility with different profile systems
* Low maintenance requirements
* Suitable for production quality control and certification testing
Customization Services
We provide comprehensive OEM & ODM manufacturing solutions for global customers.
Customization options include:
* Hydraulic or servo-driven models
* Customized testing capacity
* Different fixture designs for various profile systems
* Computer control software customization
* Multi-language operating interface
* Logo printing
* Nameplate customization
* Packaging customization
* Private label manufacturing
* Complete window and door testing laboratory solutions
Quality Inspection
Each Weld Corner Strength Testing Machine undergoes strict quality control before shipment.
Inspection procedures include:
* Raw material inspection
* CNC machining verification
* Load cell calibration
* Loading accuracy verification
* Software functional testing
* Complete machine operation test
* Final appearance inspection
* Packaging inspection
Calibration reports and factory inspection certificates are available upon request.
Packaging & Shipping
Professional export packaging ensures safe transportation worldwide.
Packaging includes:
* Protective foam cushioning
* Reinforced export cartons
* Fumigation-free wooden cases
* Standard accessories
* User manual
* Calibration certificate (optional)
Shipping methods:
* Express Delivery
* Air Freight
* Sea Freight
* Railway Transportation
After-sales Service
We provide comprehensive technical support before and after purchase.
Our services include:
* Installation guidance
* Software installation assistance
* Remote operation training
* Online technical consultation
* Spare parts supply
* Calibration support
* Warranty service
* Lifetime technical assistance
Development History
Founded in 2009 with a registered investment of 3 million RMB, our company secured a firm foothold amid fierce market competition in the early startup phase, supported by sharp market insight and a professional sales team. With continuous technical upgrades and surging global market demand, Wanluda has ramped up investment in product development and expanded our product portfolio year by year, earning remarkable recognition across the industry. Thanks to reliable product quality and consistent positive market reputation, we have gained long-term trust from global partners, expanded our business coverage extensively, and grown into a key domestic manufacturer of testing instruments.
Frequently Asked Questions
Q1: What products can be tested with the Weld Corner Strength Testing Machine?
A: The machine is designed for testing welded corner joints of uPVC windows, PVC doors, vinyl profiles, plastic frames and other welded building components.
Q2: What data can the machine provide?
A: The tester measures maximum corner strength, breaking force, displacement, deformation and force-displacement curves for evaluating weld quality.
Q3: Can the machine be customized?
A: Yes. We provide OEM and ODM services, including customized testing capacities, fixture designs, software interfaces, branding, packaging and complete laboratory solutions.
Q4: How do you ensure testing accuracy?
A: Every machine undergoes load cell calibration, loading accuracy verification, functional testing and complete factory inspection before shipment.
Q5: What after-sales services do you provide?
A: We provide installation guidance, software support, operation training, calibration services, spare parts supply, warranty service and lifetime technical assistance.
Q6: Is the equipment suitable for production quality control?
A: Yes. The machine is widely used by window and door manufacturers, testing laboratories and certification organizations for routine quality inspection and product performance verification.
