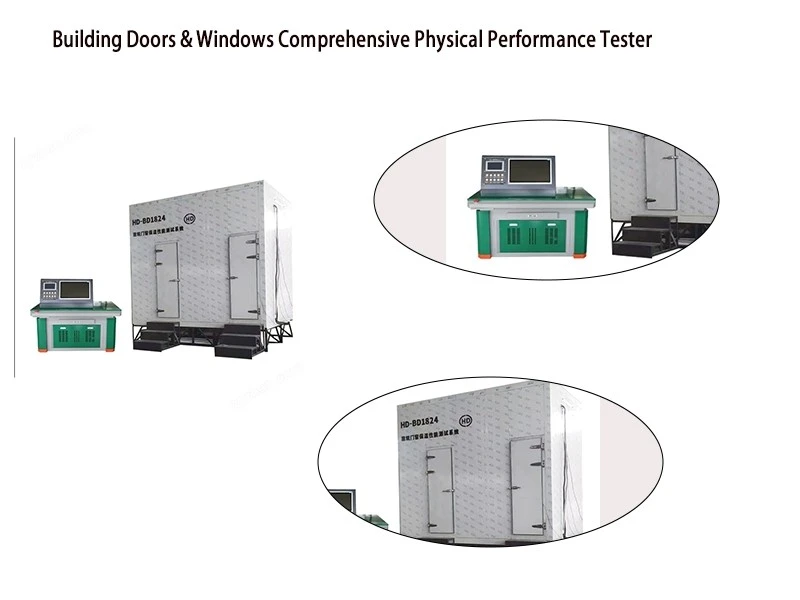

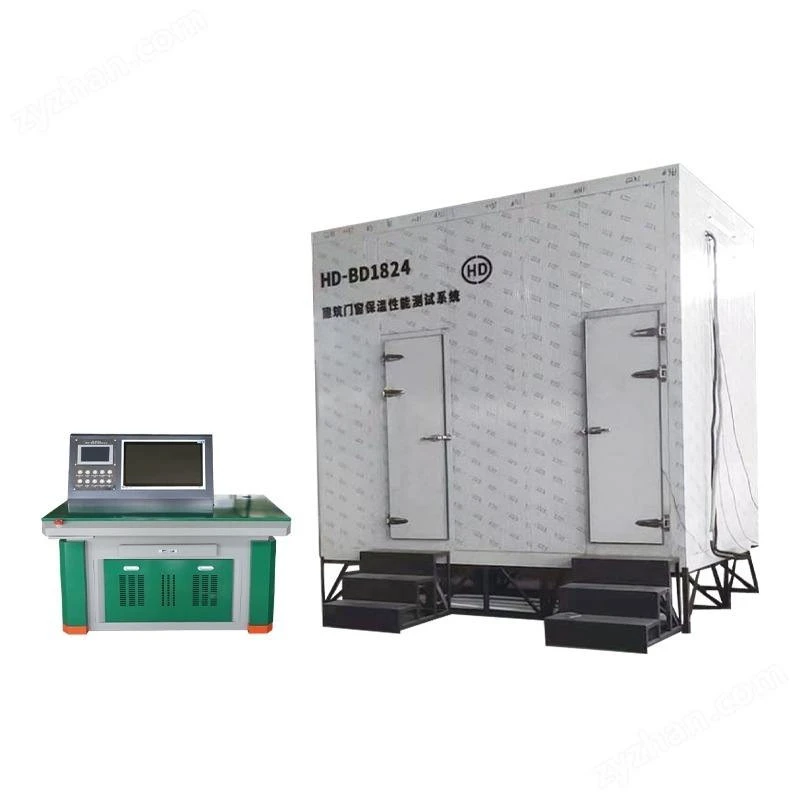

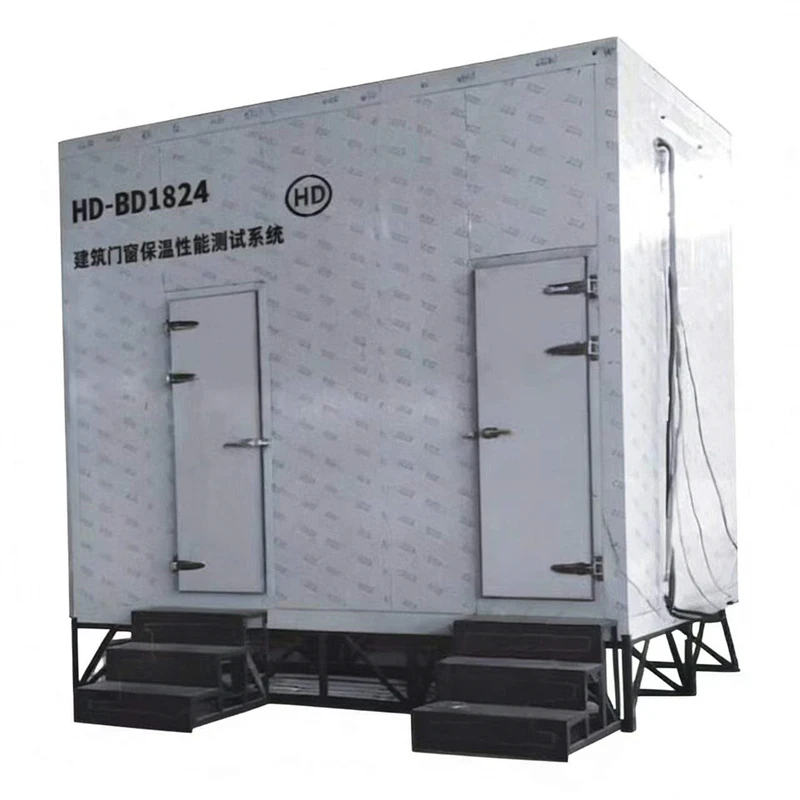

Window Thermal Insulation Testing Machine
High-Precision Window Thermal Insulation Testing Machine for Accurate Thermal Performance Evaluation
The Window Thermal Insulation Testing Machine is a professional laboratory system designed to evaluate the thermal insulation performance (U-value / Thermal Transmittance) of windows, doors, curtain walls, and other building envelope components. By simulating indoor and outdoor temperature conditions, the system accurately measures heat transfer through building products, helping manufacturers improve energy efficiency and comply with international building standards.
Equipped with advanced climate control technology, precision temperature sensors, heat flux measurement systems, and intelligent data analysis software, the machine provides reliable, repeatable, and standards-compliant testing results for research laboratories, certification bodies, and building material manufacturers.
Applications
The Window Thermal Insulation Testing Machine is suitable for evaluating the thermal performance of a wide variety of building products.
|
Typical Testing Samples Include: * Aluminum Windows * uPVC Windows * Wooden Windows * Steel Windows * Thermally Broken Aluminum Windows * Sliding Windows * Casement Windows * Fixed Windows * Exterior Doors * Curtain Wall Systems * Glass Façades * Insulated Glass Units (IGUs) * Low-E Windows * Passive House Windows |
Industries Served: * Window & Door Manufacturers * Curtain Wall Manufacturers * Building Material Manufacturers * Green Building Certification Organizations * Government Quality Inspection Centers * Universities & Research Institutes * Construction Engineering Laboratories * Third-party Testing Laboratories |
Material Selection
Premium industrial materials and high-quality components ensure accurate thermal testing and long-term equipment reliability.
|

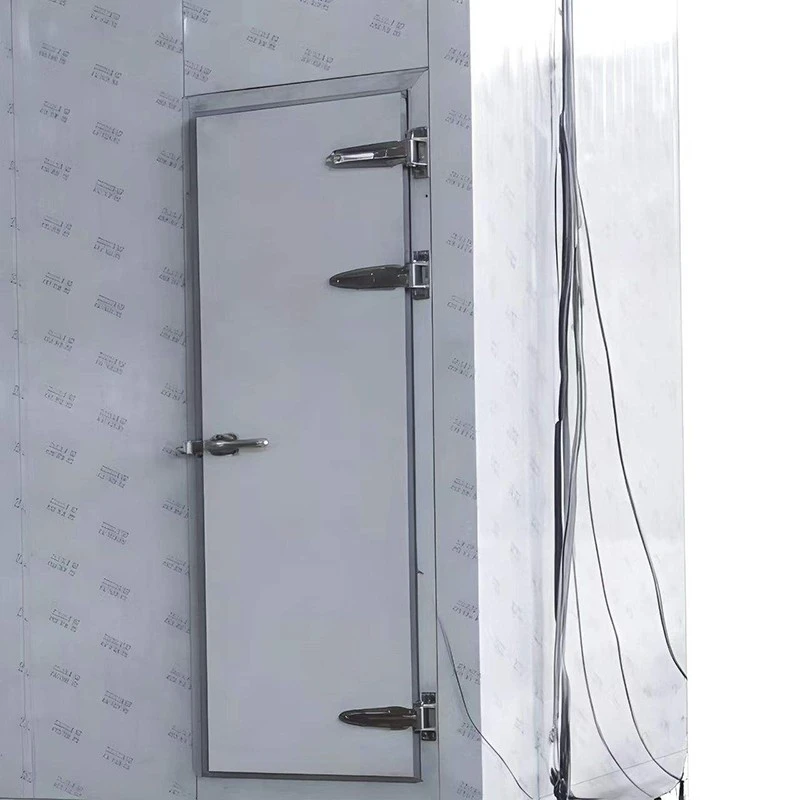

High-Performance Climate Chamber * Double-layer insulated chamber * High-strength steel structure * Excellent thermal insulation * Durable industrial construction |
Precision Temperature Control System * High-accuracy platinum temperature sensors * Uniform temperature distribution * Intelligent PID temperature control * Stable environmental simulation |
|
Heat Flux Measurement System * High-sensitivity heat flux sensors * Accurate thermal transmittance measurement * Excellent long-term stability * High repeatability |
Intelligent Control Platform * Industrial PLC or PC-based controller * High-speed data acquisition * Automatic data analysis * Reliable long-term operation |
Working Principle

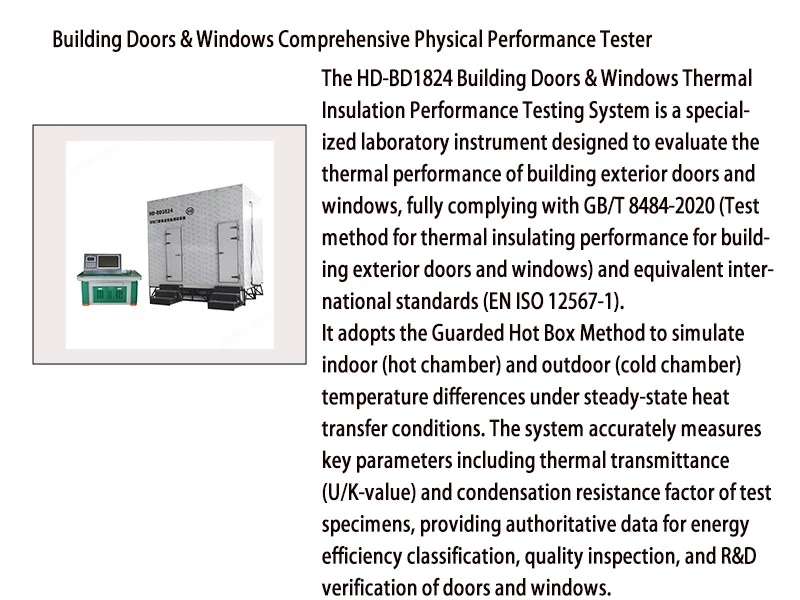

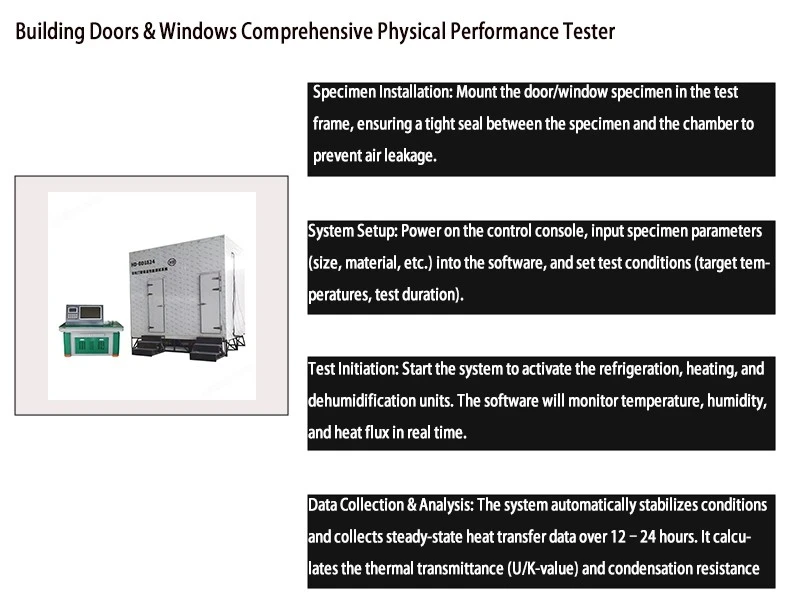

The Window Thermal Insulation Testing Machine evaluates thermal insulation by creating a controlled temperature difference between the warm and cold sides of the test specimen.
The specimen is installed between two climate-controlled chambers that simulate indoor and outdoor environmental conditions. Precision temperature sensors continuously monitor surface and air temperatures, while heat flux sensors measure the amount of heat passing through the specimen.
The intelligent software automatically calculates key thermal performance parameters, including:
- Thermal Transmittance (U-value)
- Overall Heat Transfer Coefficient
- Surface Temperature Distribution
- Heat Flux Density
- Temperature Difference
- Energy Transfer Rate
- Thermal Resistance (Optional)
The testing process is fully automated and generates comprehensive reports for certification, product development, and quality assurance.
Key Features
High Testing Accuracy
* High-precision temperature sensors
* Accurate heat flux measurement
* Stable climate control
* Excellent repeatability
Intelligent Environmental Simulation
* Independent hot and cold chambers
* Automatic temperature regulation
* Stable humidity control (optional)
* Real-time environmental monitoring
Automatic Data Analysis
* Automatic U-value calculation
* Real-time temperature curves
* Heat flux analysis
* Historical data storage
* Automatic report generation
* Excel and PDF export
Wide Testing Capability
Suitable for testing:
* Residential windows
* Commercial windows
* Curtain wall systems
* Exterior doors
* Insulated glazing units
* Energy-efficient building components
User-Friendly Software
* Touchscreen or PC interface
* Multi-language software
* One-click testing
* Real-time graphical display
* USB and Ethernet communication
* LIMS compatibility (optional)
Easy Maintenance
* Modular climate control components
* Easy sensor calibration
* Convenient maintenance access
* Low operating costs
* Long service life
Customization Service
We provide comprehensive OEM and ODM solutions based on laboratory requirements and international standards.
Customization options include:
* Test chamber dimensions
* Temperature range
* Humidity control system
* Sample size
* Sensor configuration
* Software language
* Voltage and frequency
* Company logo
* Machine color
* Customized testing reports
* LIMS/MES integration
Quality Inspection
Every Window Thermal Insulation Testing Machine undergoes comprehensive inspection before shipment.
Inspection procedures include:
* Temperature sensor calibration
* Heat flux sensor verification
* Climate chamber performance testing
* Temperature uniformity testing
* Software function verification
* Continuous operation testing
* Factory acceptance inspection
Each machine is supplied with calibration certificates, inspection reports, and operation manuals.
Packaging & Logistics
Professional export packaging ensures safe transportation worldwide.
Packaging includes:
* Waterproof protective wrapping
* Shockproof foam cushioning
* Anti-rust treatment
* Reinforced steel protection
* Fumigation-free plywood case
Shipping methods:
* Sea Freight
* Air Freight
* Railway Transportation
* International Express
After-sales Service
We provide comprehensive technical support throughout the equipment lifecycle.
Our services include:
* Installation guidance
* Online technical support
* Remote troubleshooting
* Software upgrades
* Calibration guidance
* Operator training
* Spare parts supply
* One-year warranty
* Lifetime technical support
Company Profile
Hebei Wanluda Test Instrument & Equipment Co., Ltd. specializes in test instrument manufacturing. We are a modern integrated enterprise covering independent R&D, production, global sales and full after-sales services. Backed by outstanding technical strength and abundant industry experience, Wanluda delivers premium, diversified testing equipment and customized total solutions for clients worldwide. Our instruments are widely deployed in research institutes, industrial inspection labs, as well as highway, railway, bridge, construction, municipal, water conservancy, power, environmental protection and geological exploration sectors. Centered on customer demands, we keep technological innovation and strive to build a leading brand within the testing equipment industry.
Frequently Asked Questions (FAQ)
Q1: What products can the Window Thermal Insulation Testing Machine evaluate?
A: The machine is designed to test aluminum windows, uPVC windows, wooden windows, thermally broken aluminum windows, insulated glass units (IGUs), Low-E windows, curtain walls, exterior doors, and other building envelope components.
Q2: Which thermal performance parameters can the system measure?
A: The system measures thermal transmittance (U-value), heat transfer coefficient, heat flux density, temperature difference, surface temperature distribution, and other thermal insulation parameters required for building energy efficiency evaluation.
Q3: Which international testing standards does the equipment support?
A: The machine can be configured to comply with major international standards, including ISO 12567, ASTM C1363, EN 12412, EN 673, and relevant GB/T standards, depending on customer requirements and testing applications.
Q4: Can the Window Thermal Insulation Testing Machine be customized?
A: Yes. We provide customized chamber sizes, temperature ranges, humidity control systems, sensor configurations, software languages, communication interfaces, OEM branding, and customized reporting functions to meet different laboratory and certification requirements.
Q5: How should the equipment be maintained?
A: Routine maintenance includes calibrating temperature and heat flux sensors, inspecting the climate control system, cleaning air circulation components, verifying chamber sealing performance, and updating the control software to maintain long-term testing accuracy.
Q6: What warranty and after-sales services do you provide?
A: We provide a 12-month warranty, lifetime technical support, remote diagnostics, software upgrades, spare parts supply, installation guidance, calibration assistance, and operator training. Our experienced technical team ensures reliable long-term operation and fast response to customer service requests.
