Cement Flexure Compression Integrated Testing Machine

Product Overview

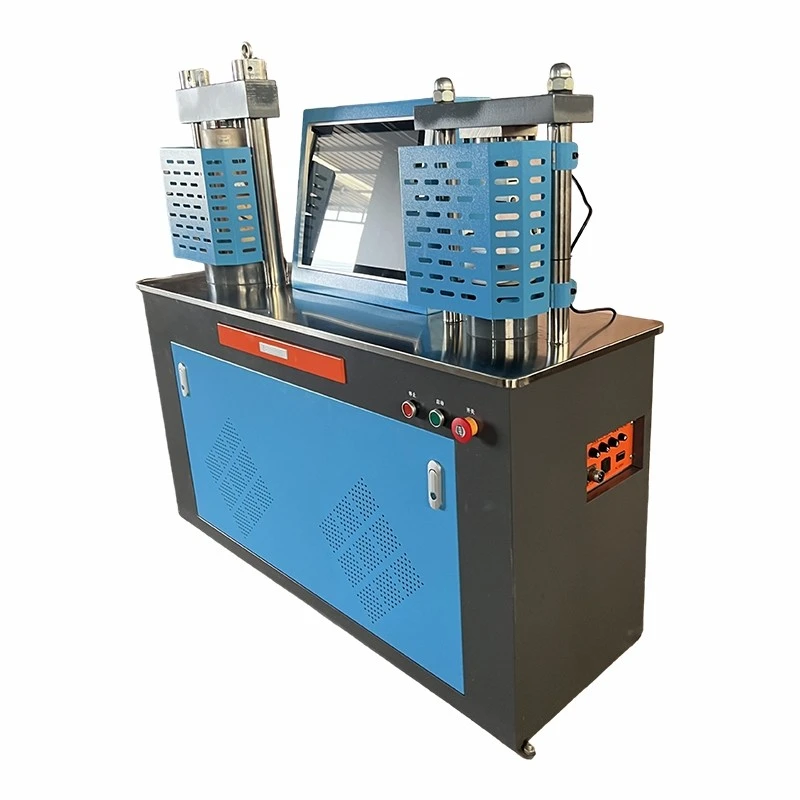

This automatic cement flexure compression testing machine is an all-in-one electro-hydraulic servo laboratory testing instrument, specially developed for strength detection of cement mortar, composite building materials, mortar blocks and cement-based composite specimens. Our machine adopts high-performance composite metal frame and aviation-grade thickened steel structure, completely solving the space waste problem caused by separate purchase of flexure tester and compression tester, and becomes the core testing equipment of global construction laboratories.

Premium High-Performance Composite Materials & Craftsmanship

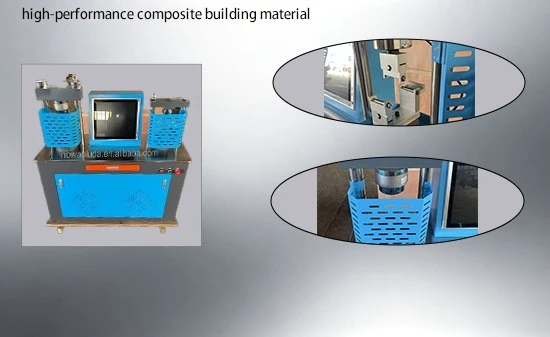

The whole machine frame is welded with high-strength composite alloy steel, after high-temperature annealing and anti-rust electrostatic spraying treatment, with strong anti-deformation ability under long-term 300kN high load operation. The two-side safety protection covers are made of impact-resistant composite plastic with hollow heat dissipation design, which can block broken test pieces splashing during the test and reduce the internal temperature rise of hydraulic components. The fixture contact surface is treated with wear-resistant alloy plating, with high hardness and long service life; the hydraulic cylinder is equipped with imported composite sealing ring, effectively preventing oil leakage, stable pressure holding and low failure rate. The touch control panel adopts industrial composite touch glass, scratch-resistant, dust-proof and water-proof, adapting to long-term laboratory environment use.

Working Principle

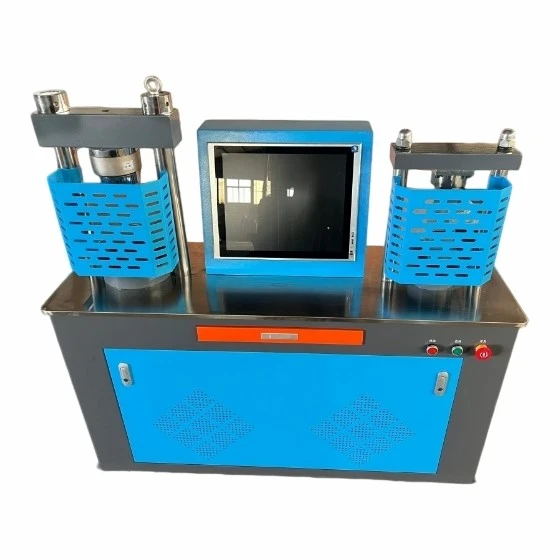

The equipment is equipped with two independent test stations: 10kN flexure station and 300kN compression station, controlled by a single integrated servo hydraulic system.

1. Flexure Test: Place the standard 40×40×160mm cement mortar prism on the three-point bending fixture. The servo motor drives the hydraulic cylinder to apply continuous uniform load downward, the high-precision load cell collects real-time force data, and the system automatically calculates the flexural strength when the specimen breaks.

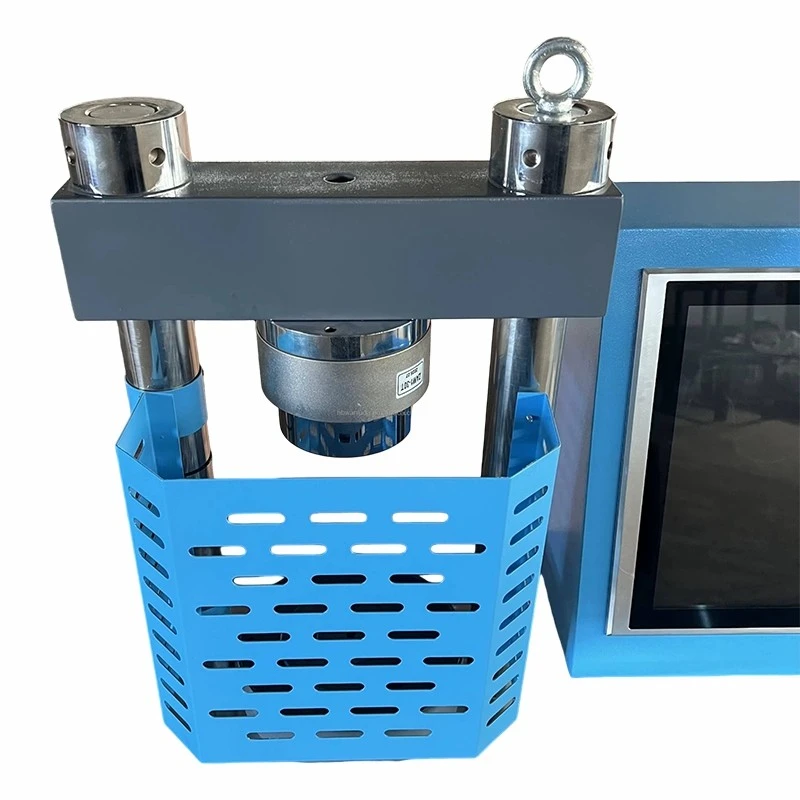

2. Compression Test: Take the two broken halves from flexure test, place them on the compression jig, the hydraulic system automatically switches the pressure range, loads at standard constant speed, records the ultimate breaking force, and converts the compressive strength value. All load, stress, time and displacement data are transmitted to the industrial touch screen in real time, automatically generating force-stress curves, storing test data, and supporting one-click report printing and USB data export. Overload, overpressure and emergency stop triple protection will cut off power and pressure supply instantly once abnormal conditions occur.

Wide Application Scenarios

● Building Material Supervision & Third-Party Testing Laboratories: Routine inspection of cement mortar strength for engineering acceptance.

● Cement Manufacturing Plants: Raw cement quality batch testing, production line quality control.

● University Civil Engineering & Material Labs: Teaching experiments, new composite building material research.

● Road, Bridge & Hydraulic Construction Units: On-site laboratory test for construction mortar and concrete auxiliary materials.

● New Material R&D Enterprises: Performance testing of high-performance composite cement-based building materials.

Customization Service Support

We provide full personalized customization for global customers:

1. Voltage & Power Customization: Support 110V/220V/380V, 50Hz/60Hz to adapt to power standards of Europe, Southeast Asia, Middle East, America and other regions

2. Software Language Customization: English, Spanish, Arabic, French, Russian multi-language operating system and test report

3. Load Range Customization: Adjust flexure load (5kN-20kN) and compression load (200kN-500kN) according to customer test materials

4. Standard Matching Customization: Pre-set test standards including ISO 679, EN 196-1, ASTM C348, GB/T 17671; add custom test standards for special composite materials

5. Accessory Matching Customization: Matching cement mortar test mould, standard sand, printing equipment, data acquisition computer as required.

Complete After-Sales Service Guarantee

We have a global professional after-sales technical team to provide full-cycle protection for your equipment:

1. 12-month full machine warranty, free replacement of damaged non-artificial parts within the warranty period

2. Remote one-on-one technical guidance: Online video debugging, operation training, software fault elimination all year round

3. Global spare parts supply warehouse: Core hydraulic parts, sensors, fixtures can be delivered within 7 working days

4. On-site after-sales service: Arrange overseas engineers for door-to-door installation, training and maintenance for large batch orders

5. Lifetime free software upgrade: Continuously update test algorithms and report templates free of charge

6. Professional operation video, detailed English operation manual and standard test operation guidance documents provided together with the machine.

FAQ

Q1: What Test Standards Can This Cement Flexure Compression Machine Comply With?

A: This machine supports mainstream international test standards by default, including ISO 679, EN 196-1, ASTM C109, ASTM C348, ASTM C349 and national standard GB/T 17671. If you need test standards for special high-performance composite building materials, we can customize and embed them into the control system for free.

Q2: Can I Customize The Machine Voltage And System Language For My Local Market?

A: Yes, full customization is available. We support 110V-440V 50/60Hz power adaptation, and multi-language systems such as English, Spanish, Arabic, French and Russian. The test report will also be output in your designated language without extra customization fees.

Q3: What After-Sales Support Can I Get After Purchasing This Testing Machine?

A: We offer a 2-year full machine warranty, lifetime free software updates, 24/7 online remote technical support, and fast global spare parts delivery. For bulk purchasing clients, we can arrange overseas engineers to provide on-site installation, operation and maintenance training service.

Q4: What Specimens Is This Equipment Mainly Used To Test?

A: It is mainly used for standard 40×40×160mm cement mortar prisms to test flexural and compressive strength. It is also applicable to various high-performance composite building materials, inorganic mortar blocks, cement-based composite new materials and other building test specimens, and the fixture can be adjusted for special-size samples upon customization.
