Fiber Optic Image Analyzer
High-Precision Fiber Optic Image Analyzer for Accurate Fiber End Face Inspection and Image Analysis
The Fiber Optic Image Analyzer is a professional optical inspection system designed to analyze the end-face quality, geometry, cleanliness, and defect distribution of optical fibers and fiber optic connectors. By combining high-resolution optical imaging, advanced image processing algorithms, and intelligent analysis software, the system delivers fast, accurate, and repeatable inspection results for fiber optic manufacturing, quality control, and laboratory research.
The analyzer is widely used in fiber optic cable production, connector manufacturing, telecommunications, data centers, research laboratories, and quality inspection organizations.
Applications
The Fiber Optic Image Analyzer is suitable for inspection and analysis of various optical fiber products and connector assemblies.
|
Typical inspection objects include: * Single-mode optical fibers * Multi-mode optical fibers * Fiber optic connectors * Ferrules * Fiber optic patch cords * MPO/MTP connectors * LC, SC, FC, ST connectors * Fiber optic adapters * Fiber optic cable assemblies * Optical communication components |
Industries served: * Fiber Optic Cable Manufacturers * Optical Connector Manufacturers * Telecommunications Equipment Suppliers * Data Centers * Optical Component Manufacturers * Universities & Research Institutes * Quality Inspection Laboratories * Fiber Network Installation Companies |
Material Selection
Premium optical and electronic components ensure stable imaging performance and long-term reliability.
High-Resolution Optical System
* Industrial-grade microscope optics
* High-definition optical lenses
* Low distortion imaging
* Excellent image clarity
01
Industrial Digital Camera
* High-resolution CMOS sensor
* Fast image acquisition
* Accurate color reproduction
* Low-noise image output
02
Precision Mechanical Structure
* CNC-machined aluminum alloy frame
* Stable focusing mechanism
* Anti-vibration design
* Corrosion-resistant housing
03
LED Illumination System
* Uniform LED lighting
* Adjustable brightness
* Long service life
* Stable illumination for consistent image quality
04
Working Principle

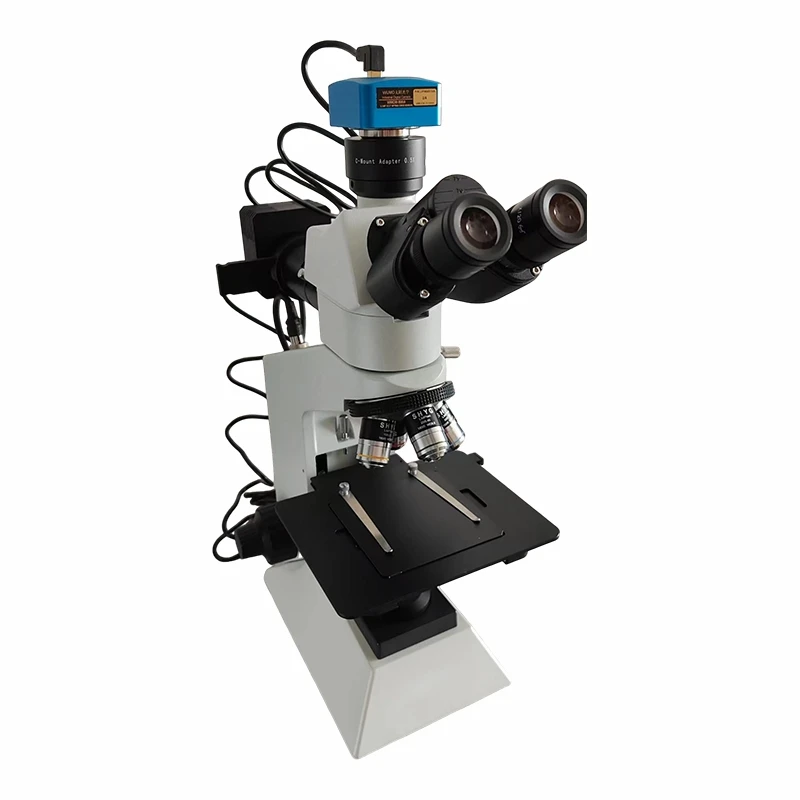

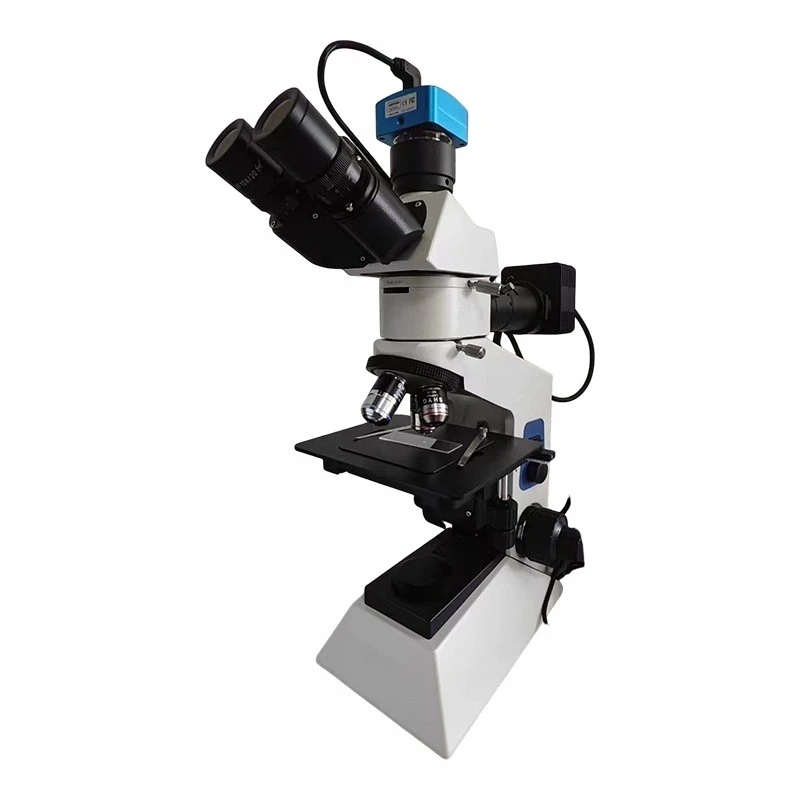

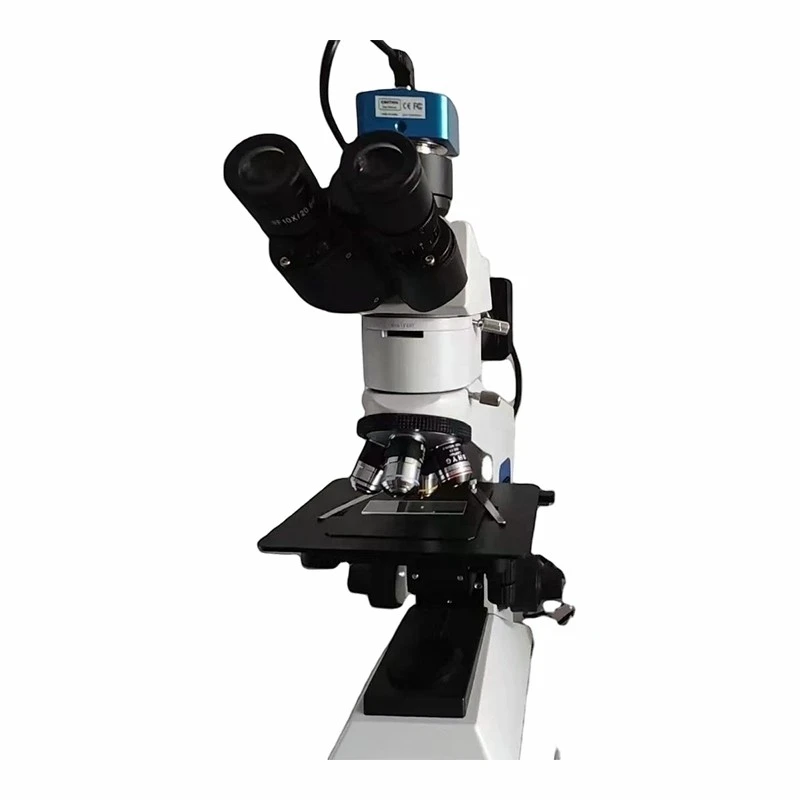

The Fiber Optic Image Analyzer uses a precision optical microscope combined with a high-resolution digital camera to capture detailed images of the fiber end face.
After image acquisition, the built-in analysis software automatically processes the image using advanced image recognition algorithms. The software detects scratches, pits, contamination, cracks, chips, polishing defects, and core geometry while measuring critical parameters such as fiber core position, ferrule dimensions, concentricity, and end-face quality.
Inspection results are displayed instantly with high-definition images, measurement values, pass/fail judgments, and comprehensive reports that can be stored or exported for quality documentation.
Key Features
High-Resolution Image Analysis
* High-definition optical imaging
* Precise defect identification
* Excellent edge detection
* Accurate geometric measurement
Intelligent Analysis Software
* Automatic defect recognition
* Fiber core measurement
* End-face quality evaluation
* Pass/Fail judgment
* Image comparison
* Historical data management
* Automatic report generation
* Excel and PDF export
Wide Compatibility
Supports inspection of:
* Single Fiber Connectors
* MPO/MTP Multi-Fiber Connectors
* Various Ferrule Sizes
* Multiple Fiber Types
* Customized Fixtures (Optional)
Fast and Efficient Inspection
* Automatic focusing (optional)
* One-click image capture
* Real-time image processing
* Rapid measurement results
* High inspection throughput
User-Friendly Operation
* Touchscreen or PC software
* Multi-language interface
* Easy calibration
* Simple fixture replacement
* Intuitive graphical interface
Easy Maintenance
* Modular optical components
* Easy lens cleaning
* Convenient calibration
* Low maintenance requirements
* Long service life
Customization Service
We provide comprehensive OEM and ODM solutions to meet different optical inspection requirements.
Customization options include:
* Camera resolution
* Microscope magnification
* Fixture design
* Connector compatibility
* Software language
* Image analysis functions
* Automatic focusing
* Barcode integration
* Company logo
* Customized inspection reports
* MES/LIMS data communication
Quality Inspection
Each Fiber Optic Image Analyzer undergoes comprehensive quality inspection before shipment.
Inspection procedures include:
* Optical calibration
* Camera performance verification
* Image resolution testing
* Software function verification
* Illumination uniformity inspection
* System stability testing
* Factory acceptance inspection
Each analyzer is supplied with calibration records, inspection reports, and operation manuals.
Packaging & Logistics
Professional export packaging ensures safe delivery during international transportation.
Packaging includes:
* Anti-static protection
* Waterproof packaging
* Shockproof foam cushioning
* Protective carrying case (optional)
* Fumigation-free plywood case for export
Shipping methods:
* Air Freight
* Sea Freight
* Railway Transportation
* International Express
After-sales Service
We provide comprehensive technical support throughout the equipment lifecycle.
Our services include:
* Installation guidance
* Online technical support
* Remote software assistance
* Software upgrades
* Operator training
* Spare parts supply
* Preventive maintenance guidance
* One-year warranty
* Lifetime technical support
About Our Company
Founded in 2009 with a registered investment of 3 million RMB, our company secured a firm foothold amid fierce market competition in the early startup phase, supported by sharp market insight and a professional sales team. With continuous technical upgrades and surging global market demand, Wanluda has ramped up investment in product development and expanded our product portfolio year by year, earning remarkable recognition across the industry. Thanks to reliable product quality and consistent positive market reputation, we have gained long-term trust from global partners, expanded our business coverage extensively, and grown into a key domestic manufacturer of testing instruments.
Frequently Asked Questions (FAQ)
Q1: What types of fiber optic products can the Fiber Optic Image Analyzer inspect?
A: The analyzer is suitable for inspecting single-mode fibers, multi-mode fibers, fiber optic connectors, ferrules, patch cords, MPO/MTP connectors, LC, SC, FC, ST connectors, and other optical communication components.
Q2: Which defects can the analyzer detect?
A: The system can automatically identify scratches, pits, chips, cracks, contamination, polishing defects, fiber core offset, ferrule damage, and other end-face imperfections while providing accurate dimensional measurements.
Q3: Can the Fiber Optic Image Analyzer be customized?
A: Yes. We offer customized camera resolutions, microscope magnifications, connector fixtures, software languages, automatic focusing systems, barcode integration, OEM branding, and customized reporting functions based on customer requirements.
Q4: How should the analyzer be maintained?
A: Regular maintenance includes cleaning optical lenses, verifying illumination performance, calibrating the imaging system, updating the analysis software, and inspecting fixtures to maintain optimal inspection accuracy.
Q5: What warranty and after-sales support do you provide?
A: We provide a 12-month warranty, lifetime technical support, remote diagnostics, software upgrades, spare parts supply, installation guidance, and operator training to ensure stable long-term operation.
Q6: Does the analyzer support automatic report generation and data management?
A: Yes. The integrated software automatically captures images, performs defect analysis, generates inspection reports, stores historical data, and exports results in formats such as Excel and PDF. It can also be customized to integrate with MES or LIMS systems for efficient production quality management.
