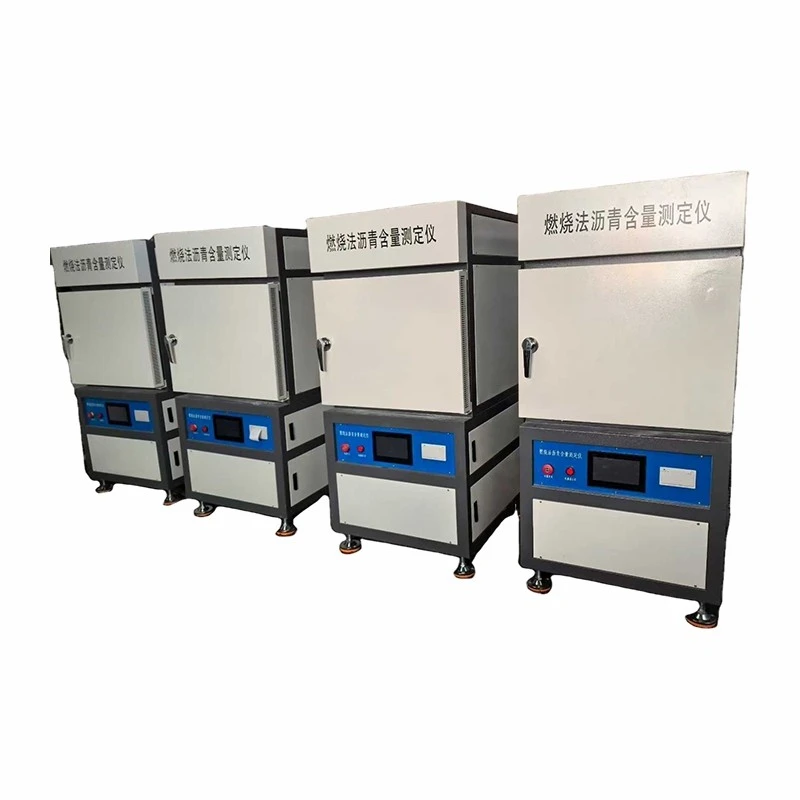

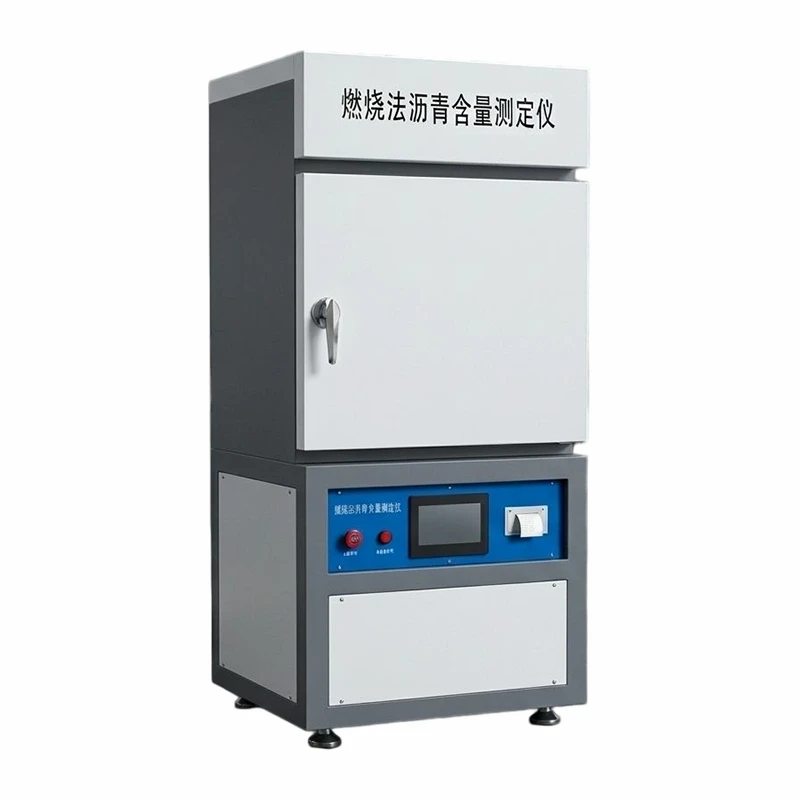

Asphalt Content Tester
High-Precision Asphalt Content Tester for Accurate Bitumen Content Analysis
The Asphalt Content Tester is a professional laboratory instrument designed to accurately determine the asphalt (bitumen) content in hot mix asphalt (HMA), asphalt concrete, reclaimed asphalt pavement (RAP), and other bituminous mixtures. Using advanced ignition furnace or solvent extraction methods (depending on the model), the tester provides fast, reliable, and repeatable results for asphalt quality control, mix design verification, and pavement material research.
The equipment is widely used in highway engineering laboratories, asphalt mixing plants, quality inspection agencies, universities, and research institutes to ensure asphalt mixtures meet project specifications and international testing standards.
Applications
The Asphalt Content Tester is suitable for determining the asphalt binder content of various asphalt mixtures and road construction materials.
|
Typical testing materials include: * Hot Mix Asphalt (HMA) * Warm Mix Asphalt (WMA) * Asphalt Concrete * Reclaimed Asphalt Pavement (RAP) * Modified Asphalt Mixtures * Polymer Modified Asphalt * Stone Mastic Asphalt (SMA) * Porous Asphalt * Bituminous Road Materials * Laboratory Asphalt Mixes |
Industries served: * Highway Construction Companies * Asphalt Mixing Plants * Road Maintenance Contractors * Government Highway Authorities * Construction Material Laboratories * Universities & Research Institutes * Third-party Testing Laboratories * Quality Inspection Centers |
Material Selection
Premium industrial materials and precision components ensure long-term durability and accurate testing performance.
High-Temperature Furnace Chamber
* Heat-resistant stainless steel construction
* Excellent thermal insulation
* Uniform heat distribution
* Long service life
01
Precision Electronic Weighing System
* High-resolution load sensor
* Stable weight measurement
* Fast response
* Excellent repeatability
02
Intelligent Temperature Control System
* Industrial-grade PID controller
* Accurate temperature regulation
* Automatic heating control
* Stable long-term operation
03
Durable Internal Components
* High-temperature resistant materials
* Corrosion-resistant structure
* Easy maintenance
* Designed for continuous laboratory operation
04
Working Principle
The Asphalt Content Tester determines asphalt binder content using one of two commonly adopted methods:
Ignition Furnace Method
The asphalt mixture sample is weighed and placed inside the furnace. The controlled high-temperature combustion process burns off the asphalt binder while preserving the aggregate. After ignition, the remaining aggregate is weighed, and the system automatically calculates the asphalt content based on the weight difference.
Solvent Extraction Method (Optional Models)
The asphalt binder is dissolved using a suitable solvent, separating it from the aggregate. After filtration, washing, drying, and weighing, the asphalt content is calculated with high accuracy.
The intelligent software records all test data and automatically generates comprehensive reports for quality control and documentation.
Key Features
High Testing Accuracy
* High-resolution weighing system
* Accurate temperature control
* Stable repeatability
* Reliable asphalt content calculation
Intelligent Digital Control
* Automatic test procedures
* Digital temperature display
* Real-time testing status
* Automatic calculation
* Historical data storage
* One-click report generation
Fast and Efficient Testing
* Rapid heating system
* Short testing cycle
* High laboratory productivity
* Automatic completion of test process
User-Friendly Operation
* Touchscreen or LCD display
* Simple menu navigation
* Multi-language software (optional)
* USB and RS232 communication
* Printer support (optional)
Comprehensive Safety Protection
* Over-temperature protection
* Automatic furnace protection
* Door safety interlock
* Fault alarm system
* Power failure protection
Easy Maintenance
* Modular heating components
* Easy furnace cleaning
* Convenient calibration
* Low maintenance requirements
* Long equipment lifespan
Customization Service
We provide flexible OEM and ODM services for different laboratory requirements and international standards.
Customization options include:
* Ignition furnace or solvent extraction configuration
* Sample capacity
* Temperature range
* Software language
* Communication interfaces
* Voltage and frequency
* Company logo
* Machine color
* Customized testing reports
* Laboratory information management system (LIMS) integration
Quality Inspection
Every Asphalt Content Tester undergoes comprehensive inspection before shipment.
Inspection procedures include:
* Temperature calibration
* Weighing system verification
* Furnace performance testing
* Electronic control inspection
* Software function verification
* Continuous operation testing
* Factory acceptance inspection
Each instrument is supplied with calibration certificates, inspection reports, and operation manuals.
Packaging & Logistics
Professional export packaging ensures safe transportation worldwide.
Packaging includes:
* Waterproof protective wrapping
* Shockproof foam cushioning
* Anti-rust treatment
* Fumigation-free plywood case
* Reinforced export packaging for heavy-duty models
Shipping methods:
* Sea Freight
* Air Freight
* Railway Transportation
* International Express
After-sales Service
We provide comprehensive technical support throughout the equipment lifecycle.
Our services include:
* Installation guidance
* Online technical support
* Remote troubleshooting
* Software updates
* Operator training
* Calibration guidance
* Spare parts supply
* One-year warranty
* Lifetime technical support
Our strengths include
* Experienced R&D and engineering team
* Modern precision manufacturing facilities
* Advanced calibration and inspection equipment
* Strict ISO quality management system
* OEM & ODM manufacturing capability
* Extensive international export experience
* Fast production and global delivery
* Professional technical consultation and responsive after-sales service
Our equipment is widely used by highway engineering laboratories, asphalt plants, universities, government inspection agencies, and research institutes across Europe, North America, Southeast Asia, the Middle East, Africa, and South America.
Frequently Asked Questions (FAQ)
Q1: What materials can the Asphalt Content Tester analyze?
A: The tester is suitable for Hot Mix Asphalt (HMA), Warm Mix Asphalt (WMA), reclaimed asphalt pavement (RAP), asphalt concrete, polymer-modified asphalt mixtures, Stone Mastic Asphalt (SMA), porous asphalt, and other bituminous mixtures.
Q2: Which testing methods are supported?
A: Depending on the model, the equipment supports the Ignition Furnace Method and the Solvent Extraction Method, enabling users to select the most appropriate testing process according to project specifications and laboratory standards.
Q3: Which testing standards does the instrument comply with?
A: The tester can be configured to comply with major international standards such as ASTM D6307, AASHTO T308, EN 12697, ISO, and GB/T standards, depending on customer requirements and local regulations.
Q4: Can the Asphalt Content Tester be customized?
A: Yes. We provide customized furnace capacities, extraction systems, software languages, communication interfaces, voltage configurations, OEM branding, and customized reporting functions to meet specific laboratory requirements.
Q5: How should the tester be maintained?
A: Routine maintenance includes cleaning the furnace chamber after testing, checking the heating elements, calibrating the weighing system regularly, inspecting temperature sensors, and updating the software to ensure consistent testing accuracy and long service life.
Q6: What warranty and technical support do you provide?
A: We provide a 12-month warranty, lifetime technical support, remote diagnostics, software upgrades, spare parts supply, installation guidance, operator training, and preventive maintenance services to ensure reliable long-term operation of your Asphalt Content Tester.
