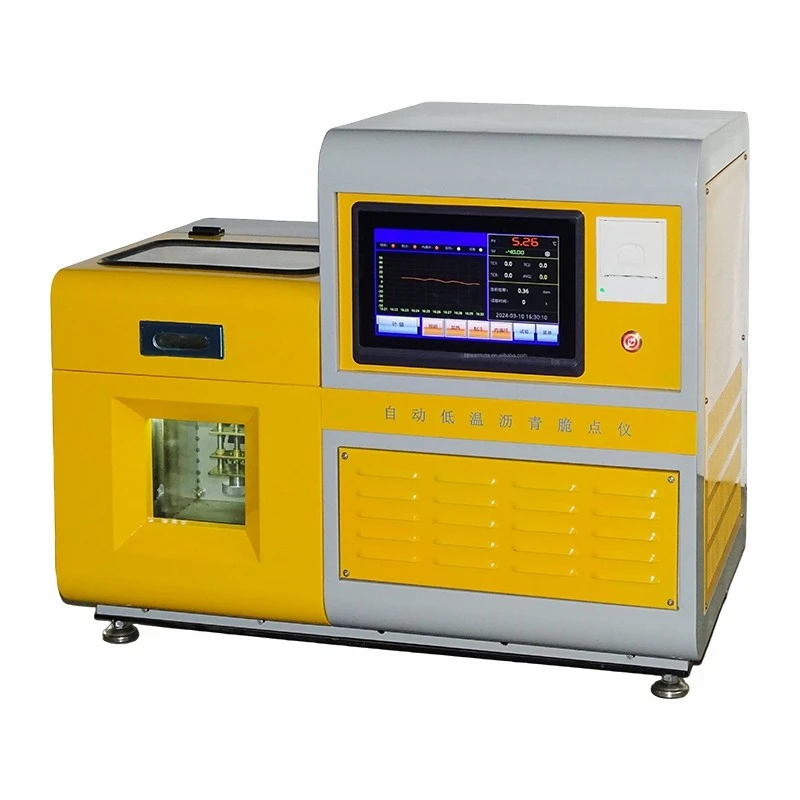

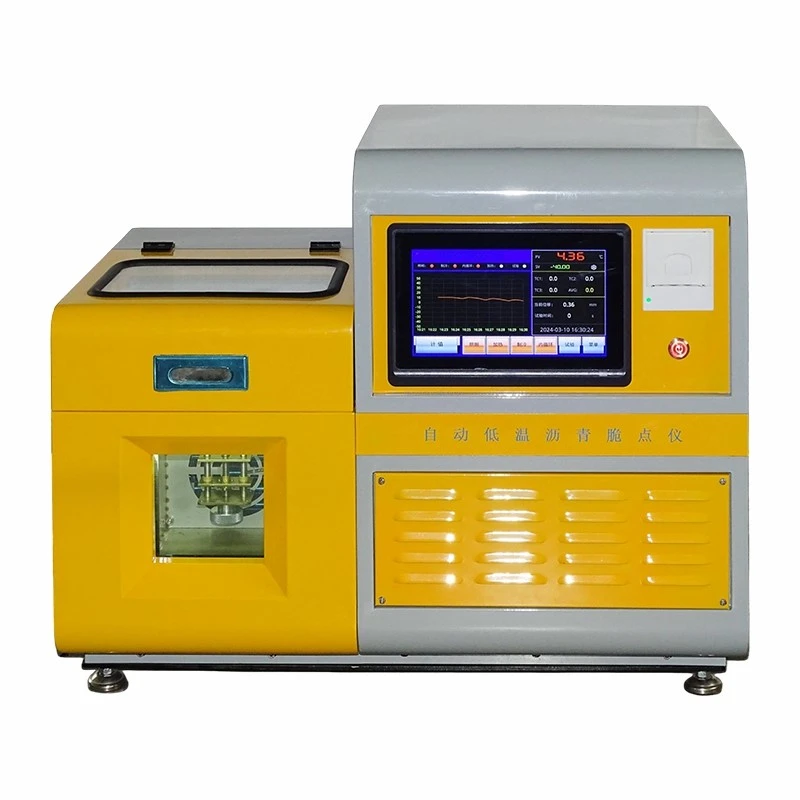

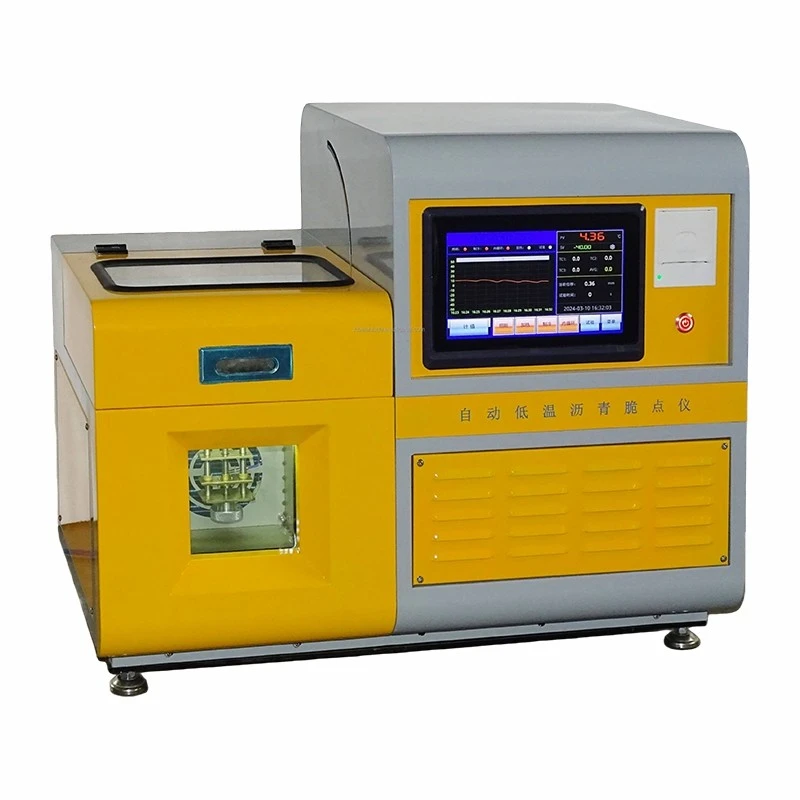

Asphalt Breaking Point Tester
High-Precision Asphalt Breaking Point Tester for Accurate Low-Temperature Performance Evaluation
The Asphalt Breaking Point Tester is a professional laboratory instrument designed to determine the low-temperature breaking point (Fraass Breaking Point) of asphalt binders and bituminous materials. The tester evaluates the temperature at which asphalt becomes brittle and cracks under specified bending conditions, providing essential data for road construction, pavement material development, and quality control.
Equipped with a precision cooling system, automatic temperature control, and reliable mechanical testing components, the instrument delivers accurate, repeatable, and standards-compliant results for laboratories, research institutes, and asphalt manufacturers.
Applications
The Asphalt Breaking Point Tester is widely used for evaluating the low-temperature cracking resistance of asphalt materials.
|
Typical testing materials include: * Petroleum Asphalt * Modified Asphalt * Polymer Modified Bitumen * Road Bitumen * Paving Asphalt * Emulsified Asphalt Residue * Bituminous Binders * Waterproofing Bitumen * Roofing Asphalt * Asphalt Research Samples |
Industries served: * Asphalt Manufacturers * Highway Engineering Companies * Road Construction Contractors * Construction Material Laboratories * Government Quality Inspection Centers * Universities & Research Institutes * Third-party Testing Laboratories |
Material Selection
Premium materials and precision components ensure long-term reliability and testing accuracy.
Stainless Steel Test Chamber
* Corrosion-resistant stainless steel construction
* Easy to clean
* Excellent low-temperature resistance
* Long service life
01
Precision Cooling System
* High-efficiency refrigeration unit
* Stable temperature control
* Uniform cooling performance
* Energy-efficient operation
02
High-Quality Mechanical Components
* Precision bending mechanism
* Wear-resistant transmission parts
* Stable specimen movement
* High repeatability
03
Intelligent Electronic Control System
* Industrial-grade controller
* Accurate temperature monitoring
* Stable electronic performance
* Reliable long-term operation
04
Working Principle
The Asphalt Breaking Point Tester operates according to the Fraass Breaking Point test method.
A thin asphalt film is applied to a standardized metal test plate, which is placed inside the low-temperature chamber. As the temperature decreases at a controlled rate, the specimen is repeatedly bent through a specified angle.
The temperature at which the asphalt film first develops visible cracks is recorded as the breaking point, indicating the material's resistance to brittle fracture at low temperatures.
During the test, the system continuously monitors and controls temperature to ensure accurate and repeatable results that comply with international testing standards.
Key Features
High Testing Accuracy
* Precise temperature control
* Stable cooling performance
* Excellent repeatability
* Reliable low-temperature measurements
Automatic Temperature Control
* Digital temperature display
* Programmable cooling process
* Uniform temperature distribution
* Automatic temperature stabilization
User-Friendly Operation
* Simple specimen installation
* Easy parameter setting
* Automatic testing sequence (optional model)
* Real-time temperature monitoring
* Digital control interface
Efficient Cooling System
* Rapid cooling capability
* Low energy consumption
* Stable refrigeration performance
* Wide temperature range
Comprehensive Safety Protection
* Over-temperature protection
* Refrigeration system protection
* Automatic fault alarm
* Emergency stop function
* Electrical safety protection
Easy Maintenance
* Stainless steel chamber for easy cleaning
* Convenient refrigeration maintenance
* Simple calibration process
* Modular component design
* Long service life
Customization Service
We provide OEM and ODM services to meet different laboratory and project requirements.
Customization options include:
* Temperature range
* Cooling system configuration
* Power supply and voltage
* Software language
* Automatic data recording
* Digital display options
* Company logo
* Machine color
* Customized test reports
* Special testing accessories
Quality Inspection
Every Asphalt Breaking Point Tester undergoes strict quality inspection before shipment.
Inspection procedures include:
* Temperature calibration
* Cooling performance verification
* Mechanical movement inspection
* Electronic control testing
* Continuous operation testing
* Factory acceptance inspection
Each instrument is delivered with calibration certificates, inspection reports, and operation manuals.
Packaging & Logistics
Professional export packaging ensures safe transportation worldwide.
Packaging includes:
* Waterproof protective wrapping
* Shockproof foam cushioning
* Anti-rust treatment
* Fumigation-free plywood case
* Reinforced export packaging
Shipping methods:
* Sea Freight
* Air Freight
* Railway Transportation
* International Express
After-sales Service
We provide comprehensive technical support throughout the product lifecycle.
Our services include:
* Installation guidance
* Online technical support
* Remote troubleshooting
* Software updates (for digital models)
* Operator training
* Spare parts supply
* Preventive maintenance guidance
* One-year warranty
* Lifetime technical support
Corporate Culture
Our corporate culture revolves around four core values: Integrity, Innovation, Collaboration and Win-Win Results. Integrity serves as the cornerstone of our sustainable development. We maintain sincerity and credibility with all clients, partners and internal staff. Innovation drives our corporate progress. We encourage our team to explore new technologies and optimize solutions to lift product performance and service standards. Collaboration builds solid bridges between our company, clients and employees, enabling mutual progress through efficient teamwork. Win-Win cooperation stands as our ultimate pursuit. We share development gains with all stakeholders to create promising long-term prospects together.
Frequently Asked Questions (FAQ)
Q1: What materials can the Asphalt Breaking Point Tester test?
A: The tester is designed for petroleum asphalt, modified asphalt, polymer-modified bitumen, paving asphalt, roofing asphalt, waterproofing bitumen, emulsified asphalt residue, and other bituminous binders requiring low-temperature brittleness evaluation.
Q2: Which testing standards does the instrument comply with?
A: The tester can be manufactured to comply with major international standards such as EN 12593 (Fraass Breaking Point), as well as relevant ASTM, AASHTO, ISO, and GB specifications where applicable.
Q3: Can the Asphalt Breaking Point Tester be customized?
A: Yes. We provide customized temperature ranges, refrigeration systems, digital control options, software languages, voltage configurations, OEM branding, and special accessories to meet different laboratory requirements.
Q4: How should the tester be maintained?
A: Routine maintenance includes cleaning the test chamber, checking the refrigeration system, calibrating the temperature sensor regularly, inspecting the bending mechanism, and verifying electronic controls to ensure consistent testing accuracy.
Q5: What warranty and after-sales services do you provide?
A: We provide a 12-month warranty, lifetime technical support, remote diagnostics, spare parts supply, installation guidance, operator training, and preventive maintenance services to ensure reliable long-term operation.
Q6: Why is the Asphalt Breaking Point test important?
A: The breaking point test evaluates the low-temperature cracking resistance of asphalt binders, helping manufacturers and engineers select suitable materials for cold climates, improve pavement durability, reduce cracking risks, and ensure compliance with road construction quality standards.
