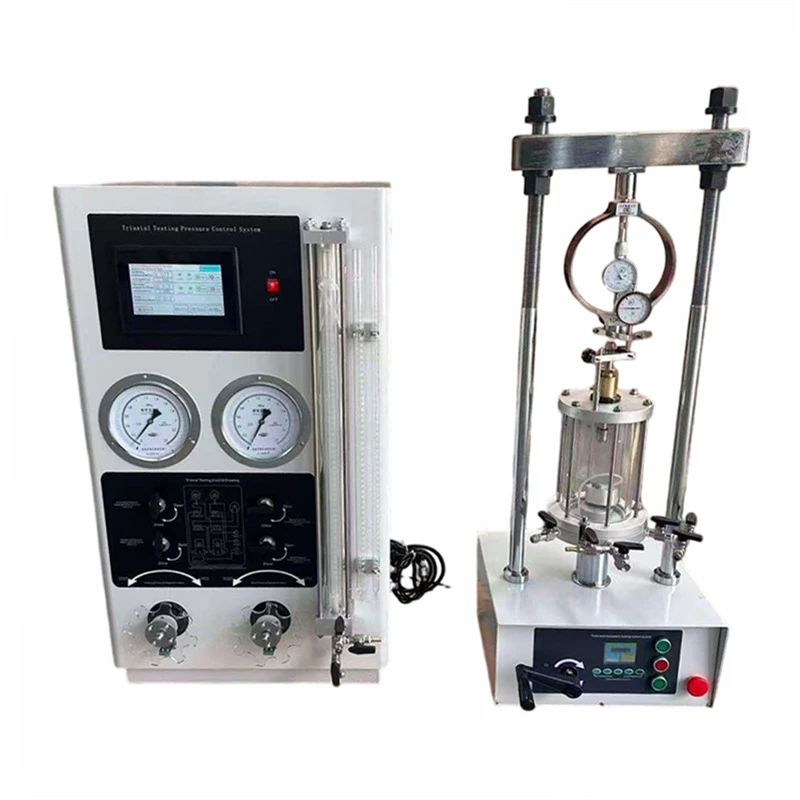

Triaxial Soil Testing Machine
Automatic Triaxial Compression Testing System. Triaxial Soil Testing Machine Overview.
The Triaxial Soil Testing Machine is a high-precision laboratory system designed to determine the mechanical properties of soils under controlled confining pressure and axial loading conditions. It is widely used in geotechnical engineering, foundation engineering, transportation infrastructure, hydraulic engineering, mining projects and scientific research.
The machine performs Unconsolidated Undrained (UU), Consolidated Undrained (CU) and Consolidated Drained (CD) triaxial tests, providing accurate measurements of shear strength, stress-strain behavior, pore water pressure and deformation characteristics.
Applications
The Triaxial Soil Testing Machine is suitable for testing various soil materials, including:
|
* Clay * Silt * Sandy Soil * Silty Clay * Gravelly Soil * Soft Soil * Compacted Soil * Embankment Materials * Foundation Soil * Road Base Materials |
Widely used in: * Geotechnical Engineering Laboratories * Universities & Research Institutes * Highway Engineering Projects * Railway Construction * Water Conservancy Engineering * Dam Construction * Mining Engineering * Third-party Testing Laboratories * Quality Inspection Centers |
Material Selection
Premium materials ensure long-term stability, corrosion resistance and testing accuracy.
Stainless Steel Pressure Chamber
* High pressure resistance
* Excellent corrosion resistance
* Transparent observation window (optional)
* Long service life
01
High-strength Alloy Steel Loading Frame
* Excellent structural rigidity
* High load capacity
* Stable loading performance
* Precision machining
02
Precision Servo Actuator
* Smooth axial loading
* Accurate displacement control
* Stable testing speed
* High repeatability
03
Imported Pressure Components
* High sealing performance
* Reliable pressure control
* Long operating life
* Minimal maintenance
04
Working Principle
The Triaxial Soil Testing Machine simulates the stress conditions experienced by soil in the field by applying confining pressure around a cylindrical soil specimen while simultaneously applying axial compression.
Testing procedure:
1. Prepare and install the soil specimen.
2. Place the specimen inside the triaxial pressure chamber.
3. Apply the required confining pressure.
4. Perform saturation and consolidation when required.
5. Apply axial loading at a controlled rate.
6. Record axial load, deformation, pore pressure and stress-strain data.
7. Calculate soil strength parameters, including cohesion (c), internal friction angle (φ), elastic modulus and stress-strain characteristics.
The testing results provide reliable engineering data for foundation design, slope stability analysis and geotechnical investigations.
Product Features
High Precision Servo Control: Advanced servo control ensures accurate loading, displacement and pressure regulation.
Automatic Data Acquisition: Integrated sensors automatically collect load, displacement and pore pressure data for efficient analysis.
Stable Pressure Control: Precision pressure regulators maintain constant confining pressure throughout the testing process.
Multiple Test Modes Supports: * UU (Unconsolidated Undrained), * CU (Consolidated Undrained), * CD (Consolidated Drained).
Intelligent Software System: Professional software provides: * Real-time curve display, * Automatic calculations, * Test report generation, * Data storage and export.
Durable Construction: Robust steel frame and high-quality components ensure long-term laboratory performance.
User-friendly Operation: Intuitive software interface simplifies testing and reduces operator workload.
Product Advantages
* High testing accuracy
* Fully automatic testing process
* Stable confining pressure control
* High repeatability
* Real-time monitoring
* Intelligent data analysis
* Low maintenance requirements
* Suitable for advanced geotechnical laboratories
Customization Services
We provide comprehensive OEM & ODM solutions to meet different laboratory requirements.
Customization options include:
* Manual, semi-automatic or fully automatic systems
* Single or multiple pressure chambers
* Customized loading capacities
* Servo or hydraulic loading systems
* Computer software customization
* Logo printing
* Nameplate customization
* User manual customization
* Complete geotechnical laboratory solutions

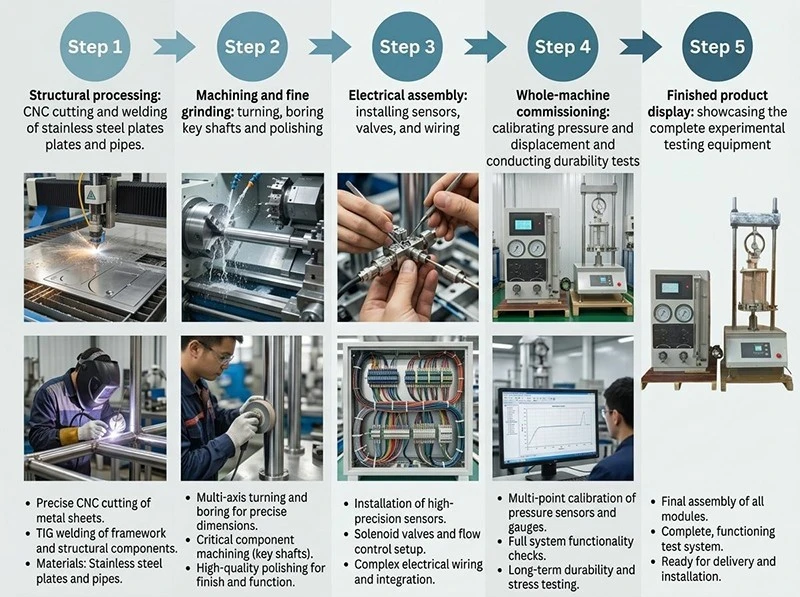

Quality Inspection

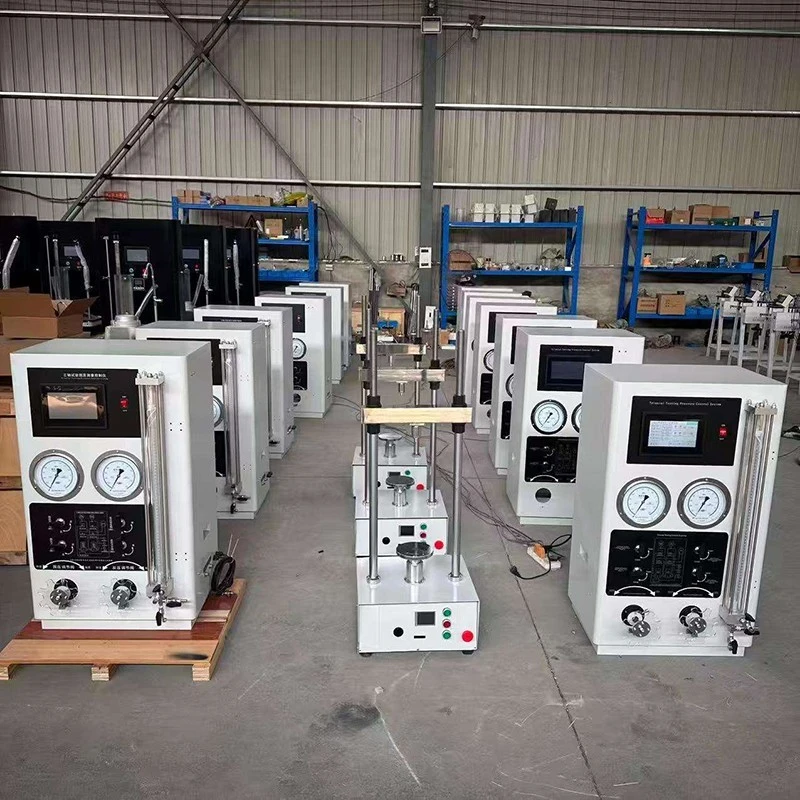

Each Triaxial Soil Testing Machine undergoes strict factory inspection before shipment.
Inspection procedures include:
* Raw material inspection
* CNC machining verification
* Pressure chamber leakage test
* Sensor calibration
* Servo loading accuracy verification
* Software functional testing
* Complete system operation test
* Final appearance inspection
Factory calibration reports and inspection certificates are available upon request.
Packaging & Shipping
Professional export packaging protects the equipment during international transportation.
Packaging includes:
* Protective foam cushioning
* Reinforced export cartons
* Fumigation-free wooden cases
* Standard accessories
* User manual
* Calibration certificate (optional)
Shipping methods:
* Express Delivery
* Air Freight
* Sea Freight
* Railway Transportation
After-sales Service
We provide comprehensive technical support throughout the product lifecycle.
Our services include:
* Remote installation guidance
* Software installation assistance
* Operation training
* Online technical support
* Spare parts supply
* Calibration services
* Warranty service
* Lifetime technical consultation
Corporate Culture
Our corporate culture revolves around four core values: Integrity, Innovation, Collaboration and Win-Win Results. Integrity serves as the cornerstone of our sustainable development. We maintain sincerity and credibility with all clients, partners and internal staff. Innovation drives our corporate progress. We encourage our team to explore new technologies and optimize solutions to lift product performance and service standards. Collaboration builds solid bridges between our company, clients and employees, enabling mutual progress through efficient teamwork. Win-Win cooperation stands as our ultimate pursuit. We share development gains with all stakeholders to create promising long-term prospects together.
Frequently Asked Questions
Q1: What types of triaxial tests can this machine perform?
A: The machine supports UU (Unconsolidated Undrained), CU (Consolidated Undrained) and CD (Consolidated Drained) tests, meeting the requirements of most geotechnical laboratories.
Q2: Which soil properties can be determined?
A: The tester measures shear strength, cohesion (c), internal friction angle (φ), stress-strain behavior, pore water pressure, deformation characteristics and elastic modulus.
Q3: Can the machine be customized for different laboratory requirements?
A: Yes. We provide OEM and ODM services, including customized loading capacities, pressure chambers, software interfaces, branding and complete laboratory configurations.
Q4: Is the testing process fully automatic?
A: Automatic models feature servo-controlled loading, automatic data acquisition, real-time curve display and intelligent report generation. Manual and semi-automatic models are also available.
Q5: How do you ensure product quality?
A: Every machine undergoes pressure testing, sensor calibration, loading accuracy verification, software testing and complete functional inspection before shipment.
Q6: What after-sales support do you provide?
A: We provide installation guidance, software support, operation training, calibration services, spare parts supply, warranty service and lifetime technical assistance.
