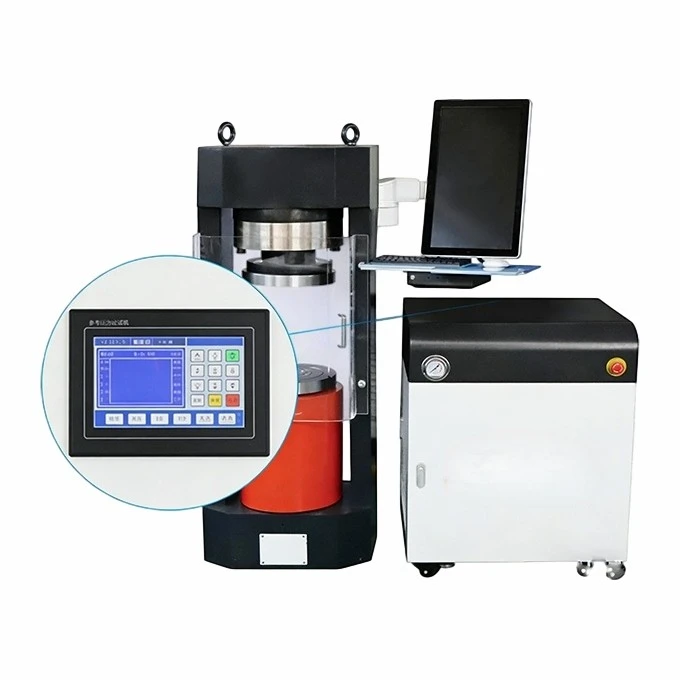

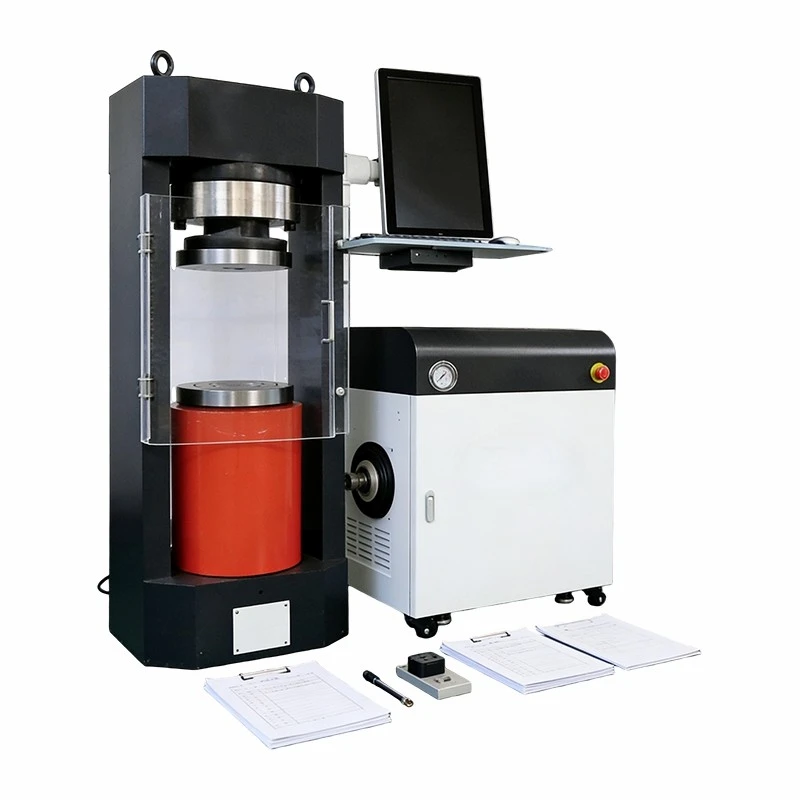

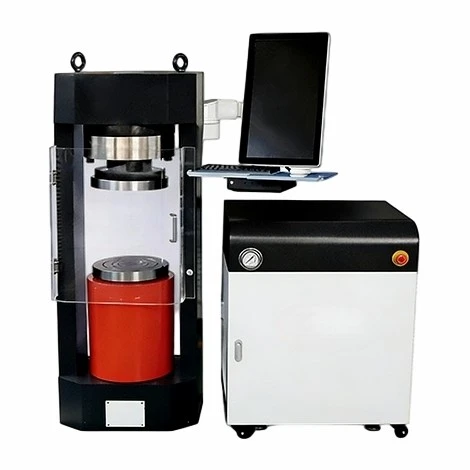

Servo Compression Testing Machine
High-Precision Servo Compression Testing Machine for Reliable Compression Strength Testing
The Servo Compression Testing Machine is designed to accurately measure the compressive strength and deformation characteristics of concrete, cement, bricks, blocks, rock, ceramics, and other construction materials. Equipped with an advanced servo-controlled loading system and intelligent testing software, it provides stable loading, precise force control, and highly repeatable test results.
The machine is widely used in construction laboratories, building material manufacturers, universities, research institutes, and quality inspection organizations to ensure materials comply with international testing standards.
Applications
The Servo Compression Testing Machine is suitable for compression testing of a wide range of construction and industrial materials.
|
Typical testing materials include: * Concrete cubes and cylinders * Cement mortar specimens * Clay bricks * Concrete blocks * Paving blocks * Natural stone * Rock specimens * Ceramic materials * Refractory materials * Lightweight building materials |
Industries served: * Construction Material Manufacturers * Ready-Mix Concrete Plants * Cement Factories * Highway & Bridge Engineering * Building Quality Inspection Centers * Universities & Research Institutes * Third-party Testing Laboratories |
Material Selection
Premium materials and precision components ensure outstanding durability and long-term testing stability.
|
Heavy-duty Load Frame * High-strength welded steel frame * Excellent rigidity under high loads * Minimal deformation during testing * Long service life |
Servo Hydraulic Loading System * High-performance servo motor * Precision hydraulic actuator * Stable loading speed * Closed-loop force control |
|
High-Accuracy Load Cell * Imported load sensor * High-resolution force measurement * Excellent repeatability * Long-term measurement stability |
Precision Compression Platens * Hardened alloy steel compression plates * High flatness and parallelism * Wear-resistant surface treatment * Uniform load distribution |
Working Principle
The Servo Compression Testing Machine applies compressive force through a servo-controlled hydraulic loading system.
The specimen is placed between the upper and lower compression platens. During testing, the servo controller precisely regulates the loading rate while the load cell continuously measures the applied force. The intelligent software records the complete testing process and automatically calculates key parameters such as:
* Maximum Compressive Strength
* Peak Load
* Load-Deformation Curve
* Compression Modulus (optional)
* Failure Load
The testing process is displayed in real time, and professional reports are generated automatically for quality analysis and certification.
Key Features
High Testing Accuracy
* Force accuracy up to ±0.5% or ±1%
* Excellent repeatability
* Stable servo-controlled loading
* High measurement reliability
Intelligent Servo Control
* Automatic loading
* Constant loading rate control
* Real-time force monitoring
* Automatic peak value capture
* Closed-loop feedback system
User-Friendly Software
* Real-time test curve display
* Automatic data analysis
* One-click report generation
* Historical data storage
* Excel and PDF export
* Multi-language interface (optional)
Wide Capacity Options
Available testing capacities include:
* 300 kN
* 600 kN
* 1000 kN
* 2000 kN
* 3000 kN
Higher capacities can be customized according to customer requirements.
Comprehensive Safety Protection
* Overload protection
* Emergency stop button
* Hydraulic pressure protection
* Automatic fault diagnosis
* Travel limit protection
* Sensor overload alarm
Easy Maintenance
* Modular hydraulic system
* Easy calibration
* Convenient oil replacement
* Low maintenance requirements
* Long equipment lifespan
Customization Service
We provide flexible OEM and ODM solutions to meet different testing requirements.
Customization options include:
* Testing capacity
* Compression platen size
* Servo control system
* Software language
* Testing standards
* Voltage and frequency
* Automatic data acquisition
* Company logo
* Machine color
* Customized testing reports
Quality Inspection
Every Servo Compression Testing Machine undergoes comprehensive factory inspection before shipment.
Inspection procedures include:
* Load cell calibration
* Servo control verification
* Hydraulic pressure testing
* Compression platen alignment inspection
* Software function testing
* Continuous operation testing
* Factory acceptance inspection
Each machine is delivered with calibration certificates, inspection reports, and operation manuals.
Packaging & Logistics
Professional export packaging ensures maximum protection during transportation.
Packaging includes:
* Anti-rust treatment
* Waterproof protective film
* Shockproof foam cushioning
* Fumigation-free plywood case
* Reinforced export packaging
Shipping methods:
* Sea Freight
* Air Freight
* Railway Transportation
* International Express
After-sales Service
We provide complete technical support throughout the equipment lifecycle.
Our services include:
* Installation guidance
* Online technical support
* Remote troubleshooting
* Operator training
* Software upgrades
* Spare parts supply
* Preventive maintenance guidance
* One-year warranty
* Lifetime technical support
Our strengths include:
* Experienced R&D and engineering team
* Modern CNC machining and assembly facilities
* Strict ISO quality management system
* Advanced calibration equipment
* OEM & ODM manufacturing capability
* Worldwide export experience
* Fast production and delivery
* Professional technical consulting and after-sales service
Our products are widely used by customers across Europe, North America, Southeast Asia, the Middle East, Africa, and South America.
Frequently Asked Questions (FAQ)
Q1: What materials can the Servo Compression Testing Machine test?
A: The machine is suitable for testing the compressive strength of concrete, cement mortar, bricks, concrete blocks, paving stones, natural stone, rock, ceramics, refractory materials, and other construction materials.
Q2: Which testing standards does the machine support?
A: The machine can be configured to comply with international standards such as ASTM, ISO, EN, BS, JIS, and GB, as well as project-specific testing requirements.
Q3: Can the machine be customized?
A: Yes. We offer customized testing capacities, compression platen sizes, servo control systems, software languages, voltage configurations, OEM branding, and special accessories to meet your laboratory or production needs.
Q4: How should the Servo Compression Testing Machine be maintained?
A: Routine maintenance includes checking hydraulic oil levels, inspecting seals and pipelines, calibrating the load cell periodically, cleaning the compression platens, lubricating moving components, and verifying software performance to ensure long-term accuracy.
Q5: What warranty and after-sales services do you provide?
A: We provide a 12-month warranty, lifetime technical support, remote troubleshooting, software upgrades, spare parts supply, installation guidance, and operator training to ensure reliable long-term operation.
Q6: Does the machine include professional testing software?
A: Yes. The machine is equipped with intelligent testing software that supports automatic loading control, real-time force-displacement curve display, peak load calculation, report generation, historical data management, and export in Excel or PDF formats, improving laboratory efficiency and ensuring complete data traceability.
