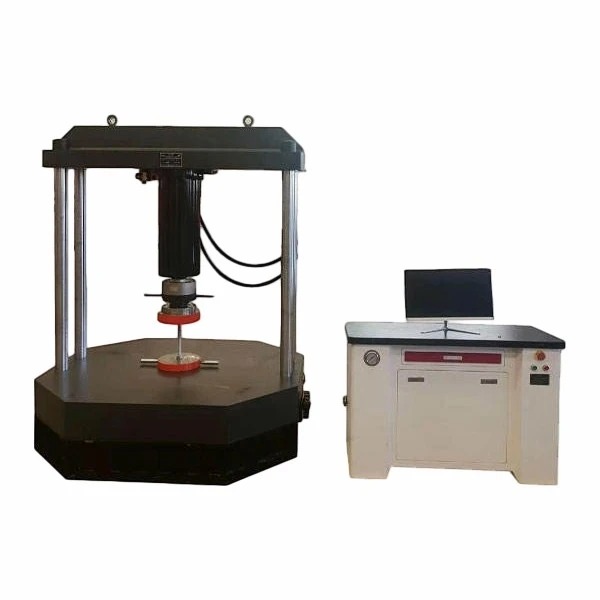

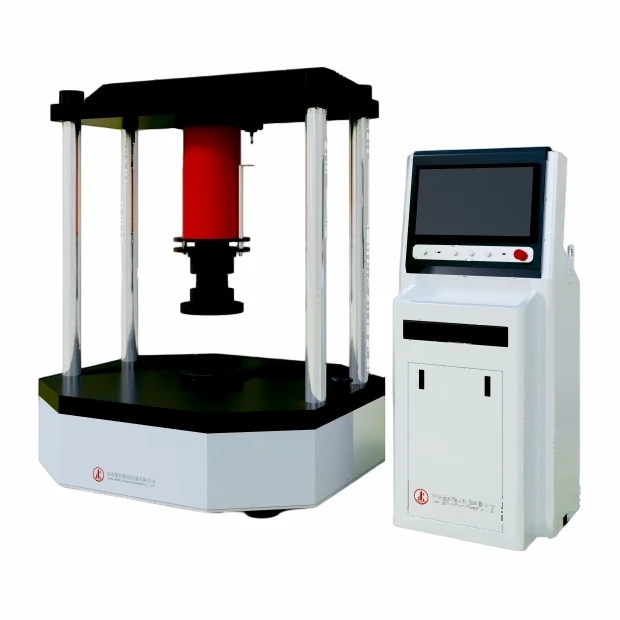

Manhole Cover Compression Testing Machine
High-Performance Manhole Cover Compression Testing Machine for Accurate Load Capacity Evaluation
The Manhole Cover Compression Testing Machine is specifically designed to determine the load-bearing capacity, compressive strength, and structural performance of manhole covers, drainage grates, inspection chamber covers, and similar municipal infrastructure products.
Equipped with an advanced servo-hydraulic control system, high-precision load sensors, and intelligent testing software, the machine delivers accurate, stable, and repeatable compression test results that comply with international and regional testing standards.
It is widely used by manhole cover manufacturers, municipal engineering companies, quality inspection laboratories, certification agencies, and research institutions.
Applications
The Manhole Cover Compression Testing Machine is suitable for testing the static load and compressive performance of various municipal products.
|
Typical testing specimens include: * Cast Iron Manhole Covers * Ductile Iron Manhole Covers * Composite Manhole Covers * FRP (Fiber Reinforced Plastic) Manhole Covers * Resin Manhole Covers * Concrete Manhole Covers * Drainage Gratings * Gully Grates * Trench Covers * Road Utility Covers |
Industries served: * Municipal Infrastructure Manufacturers * Construction Material Factories * Highway & Bridge Engineering * Water Supply & Drainage Companies * Quality Inspection Laboratories * Certification Organizations * Universities & Research Institutes |
Material Selection
Premium materials and industrial-grade components ensure excellent durability and testing reliability.
Heavy-duty Load Frame
* High-strength welded steel construction
* High rigidity with minimal deformation
* Designed for continuous heavy-load testing
* Long service life
01
Servo Hydraulic Loading System
* Precision electro-hydraulic servo actuator
* Stable loading speed
* Closed-loop force control
* Smooth and accurate load application
02
High-Accuracy Load Cell
* Imported high-precision load sensor
* Excellent repeatability
* Wide measurement range
* Long-term measurement stability
03
Compression Platens
* Hardened alloy steel compression plates
* Precision-machined surfaces
* High wear resistance
* Uniform force distribution during testing
04

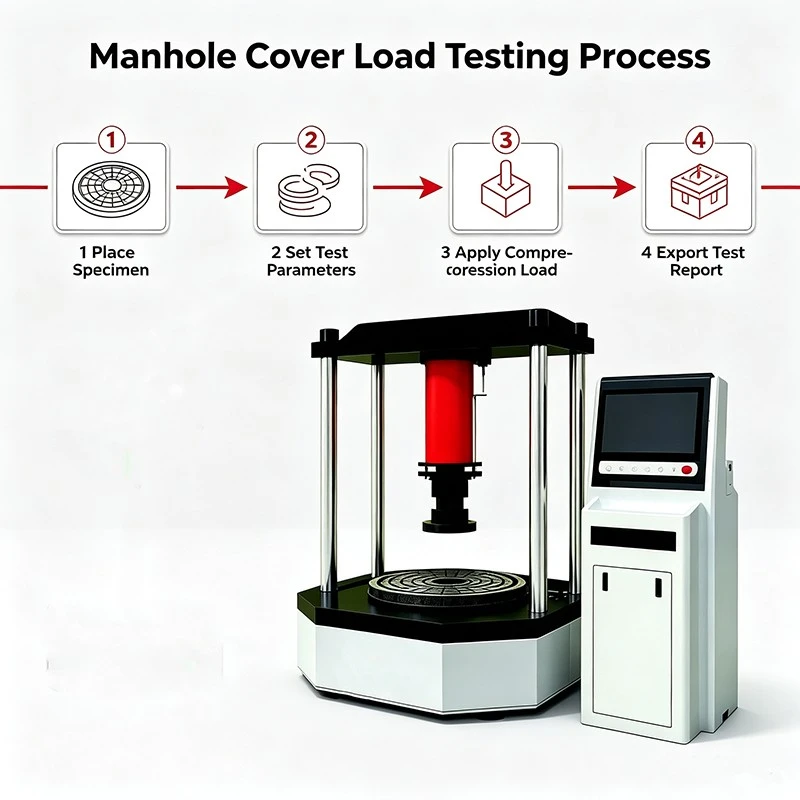

Working Principle
The specimen is placed on the testing platform according to the applicable testing standard.
The electro-hydraulic servo system applies compressive force through the upper compression platen at a controlled loading rate. During the test, the load cell continuously measures the applied force while the controller records deformation and loading data.
The intelligent software automatically analyzes the test results and calculates:
* Maximum Load Capacity
* Ultimate Compression Strength
* Load-Deformation Curve
* Failure Load
* Structural Performance
* Pass/Fail Evaluation Based on Selected Standards
The complete testing process is monitored in real time, and professional reports are generated automatically.
Key Features
High Testing Accuracy
* Force accuracy up to ±0.5% or ±1%
* Stable closed-loop servo control
* High repeatability
* Reliable long-term performance
Wide Testing Capacity
Available testing capacities include:
* 1000 kN
* 2000 kN
* 3000 kN
* 5000 kN
* 6000 kN
Higher capacities can be customized according to customer requirements.
Intelligent Testing Software
* Automatic loading control
* Real-time force-displacement curves
* Automatic peak load calculation
* Test report generation
* Historical data storage
* Excel, PDF, and printable reports
* Multi-language interface (optional)
Multiple Testing Modes
Supports:
* Static Compression Test
* Load Bearing Test
* Structural Strength Test
* Cyclic Loading Test (Optional)
* Customized Test Programs
Comprehensive Safety Protection
* Overload protection
* Hydraulic pressure protection
* Emergency stop button
* Automatic fault diagnosis
* Travel limit protection
* Sensor overload alarm
Easy Maintenance
* Modular hydraulic design
* Convenient calibration
* Easy hydraulic oil replacement
* Low maintenance requirements
* Long operating lifespan
Customization Service
We offer flexible OEM and ODM solutions to meet different industry standards and customer requirements
Customization options include:
* Testing capacity
* Compression platen size
* Test opening dimensions
* Servo control system
* Software language
* Testing standards
* Voltage and frequency
* Company logo
* Machine color
* Customized test reports
* Automatic data management system
Quality Inspection
Each Manhole Cover Compression Testing Machine undergoes comprehensive factory inspection before shipment.
Inspection procedures include:
* Load cell calibration
* Servo control verification
* Hydraulic pressure testing
* Compression platen alignment inspection
* Software function testing
* Continuous full-load operation testing
* Factory acceptance inspection
Calibration certificates, inspection reports, and operation manuals are supplied with every machine.
Packaging & Logistics
Professional export packaging ensures maximum protection during international transportation.
Packaging includes:
* Anti-rust treatment
* Waterproof protective wrapping
* Shockproof foam cushioning
* Fumigation-free plywood case
* Reinforced steel base for heavy-duty models
Shipping options:
* Sea Freight
* Air Freight
* Railway Transportation
* International Express
After-sales Service
We provide complete technical support throughout the equipment lifecycle.
Our services include:
* Installation guidance
* Online technical support
* Remote troubleshooting
* Operator training
* Software updates
* Spare parts supply
* Preventive maintenance guidance
* One-year warranty
* Lifetime technical support
Company Profile
Hebei Wanluda Test Instrument & Equipment Co., Ltd. specializes in test instrument manufacturing. We are a modern integrated enterprise covering independent R&D, production, global sales and full after-sales services. Backed by outstanding technical strength and abundant industry experience, Wanluda delivers premium, diversified testing equipment and customized total solutions for clients worldwide. Our instruments are widely deployed in research institutes, industrial inspection labs, as well as highway, railway, bridge, construction, municipal, water conservancy, power, environmental protection and geological exploration sectors. Centered on customer demands, we keep technological innovation and strive to build a leading brand within the testing equipment industry.
Our products are widely used in municipal engineering projects, construction laboratories, universities, quality inspection centers, and manufacturing industries across Europe, North America, Southeast Asia, the Middle East, Africa, and South America.
Frequently Asked Questions (FAQ)
Q1: What products can the Manhole Cover Compression Testing Machine test?
A: The machine is designed for testing cast iron, ductile iron, composite, FRP, resin, and concrete manhole covers, as well as drainage gratings, trench covers, and other municipal infrastructure products.
Q2: Which testing standards does the machine support?
A: The machine can be configured to comply with international and regional standards such as EN 124, ASTM, ISO, BS, GB, and other customer-specified testing methods.
Q3: Can the machine be customized?
A: Yes. We provide customized testing capacities, platen sizes, loading systems, software languages, voltage configurations, OEM branding, and special fixtures based on your testing requirements.
Q4: How should the machine be maintained?
A: Routine maintenance includes checking hydraulic oil levels, inspecting seals and pipelines, calibrating the load cell periodically, cleaning the compression platens, lubricating moving parts, and verifying software performance to ensure long-term testing accuracy.
Q5: What warranty and after-sales support do you provide?
A: We offer a 12-month warranty, lifetime technical support, remote troubleshooting, software upgrades, spare parts supply, installation guidance, and operator training to ensure stable long-term operation.
Q6: Does the machine include professional testing software?
A: Yes. The machine is equipped with intelligent testing software that supports automatic loading control, real-time force-displacement curve display, peak load analysis, report generation, historical data management, and export in Excel or PDF formats, improving laboratory efficiency and ensuring complete testing traceability.
