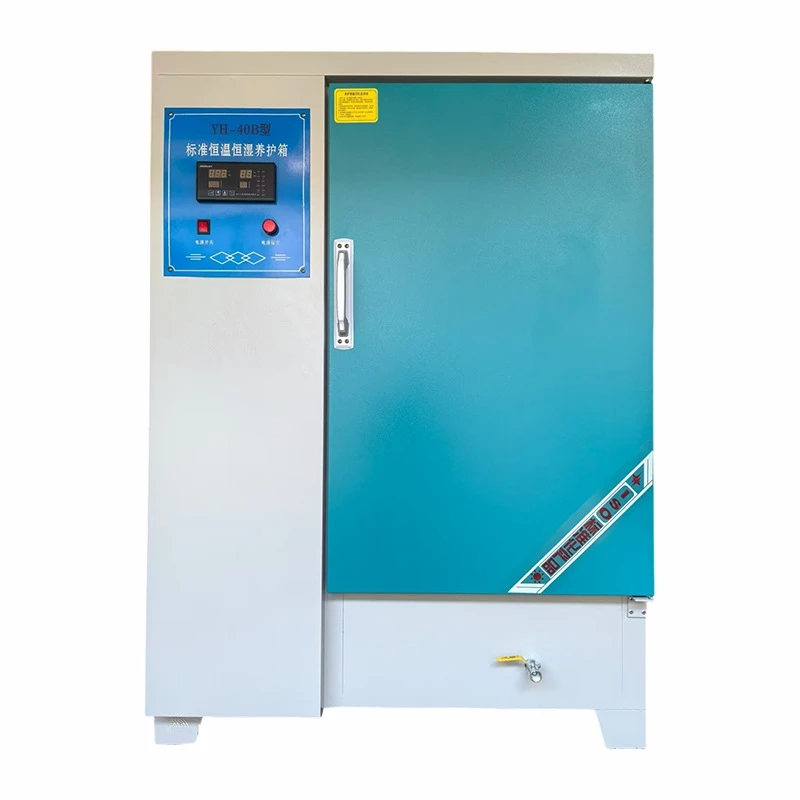

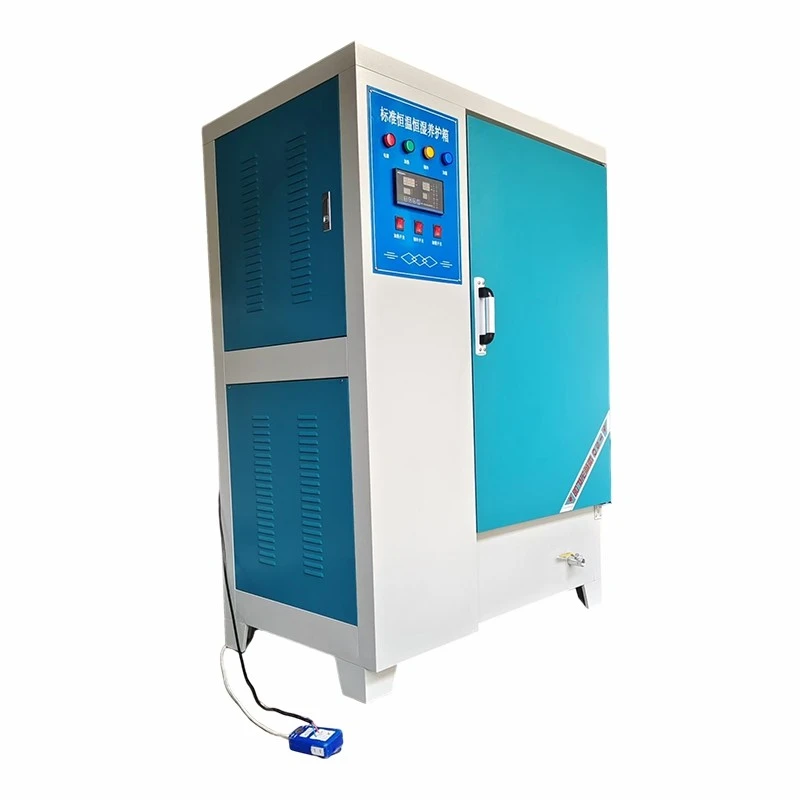

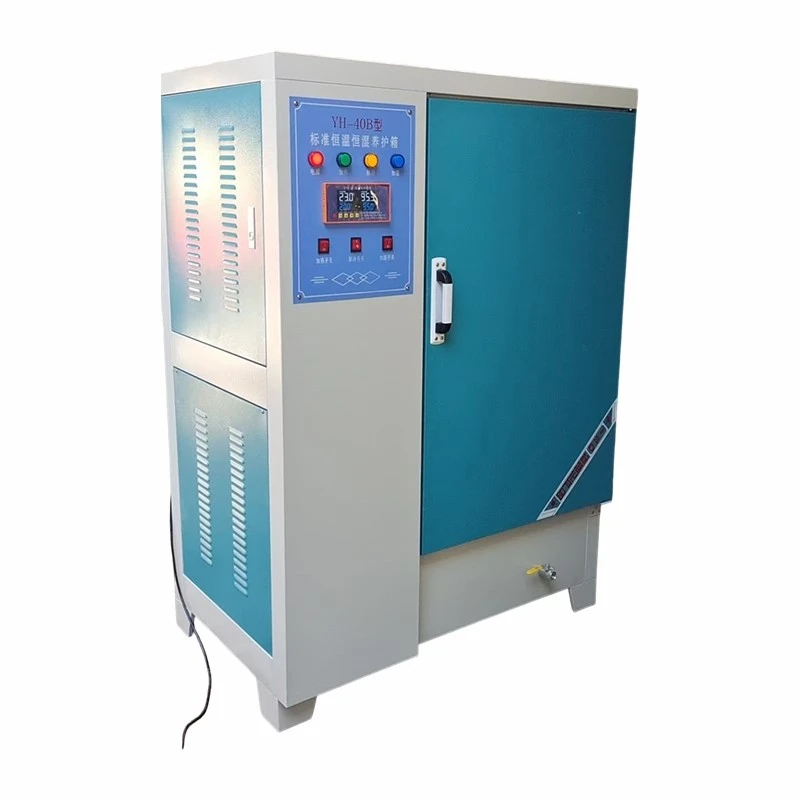

YH-40B Constant Temperature & Humidity Curing Cabinet for Concrete
Our YH-40B standard concrete curing cabinet is indispensable laboratory equipment for constant temperature and humidity maintenance of concrete, cement and mortar test specimens. It precisely maintains the standard curing environment required by global construction testing standards, widely adopted by concrete batching plants, inspection institutions and civil engineering labs around the world.
Wide Application Range
● Test Specimens: 100mm / 150mm concrete cube blocks, cement mortar prisms, compressive test samples, impermeability test specimens.
● Core Function: Provide stable standard curing environment (temperature 20±2℃, humidity ≥95%) for fresh cementitious samples to ensure uniform hydration and accurate strength test results.
● Applicable Scenarios: Ready-mix concrete stations, third-party CMA accredited testing laboratories, university civil engineering labs, road & bridge construction projects, precast component factories, hydraulic engineering inspection departments.
● Compliant Standards: GB/T50081, ISO 1920, EN 12390-2; meets testing specifications for Asia, Europe, Middle East and Southeast Asian markets.
● Matching Test Equipment: Perfectly matched with concrete compression tester, impermeability tester, chloride ion testing equipment to build a complete concrete performance testing laboratory.
Premium High-Grade Material & Stable Structure
● Outer Cabinet: Thickened cold-rolled steel plate with electrostatic anti-rust paint spraying, scratch-resistant, corrosion-resistant, long service life in damp lab environments.
● Inner Liner: Food-grade stainless steel inner tank, anti-rust, anti-condensation, easy to wipe and clean residual water and cement dust.
● Insulation Layer: High-density polyurethane integral foaming insulation material, excellent thermal insulation effect, effectively reduce energy consumption and temperature fluctuation.
● Sealed Cabinet Door: Thickened silicone rubber sealing strip around the door frame, tight sealing to lock internal humidity and prevent cold air leakage; heavy-duty anti-rust metal handle for easy opening.
● Internal Storage: Multi-layer stainless steel specimen racks, adjustable layer spacing, large storage capacity for dozens of standard test blocks.
● Bottom Water Tank: Independent water storage drawer with drain valve, convenient water filling and sewage discharge, no accumulated water pollution inside the cabinet.
Precise & Stable Curing Environment
● Intelligent digital constant temperature & humidity control system, real-time monitoring and automatic adjustment of internal environment.
● Constant temperature range: 18~22℃, control accuracy ±0.5℃, strictly lock the standard curing temperature of 20℃.
● Humidity control range: 90%~99%, stable humidity above 95% all day long, fully meet the curing humidity requirements of cement-based specimens.
● Built-in atomizing humidifier + circulating air fan: Uniform air circulation inside the box, no local dry or over-wet areas, consistent curing condition for all specimens on each layer.
● Automatic water shortage protection function: The machine automatically stops heating and humidifying and triggers an alarm when the water tank lacks water, avoiding damage to heating and humidifying components.
● Continuous 24-hour unattended operation, temperature and humidity data can be viewed in real time on the digital display panel.
Ultra-Easy Operation & Low Maintenance
● Digital LED display control panel, intuitive button operation, simple parameter setting without professional training.
● Fully automatic operation: After setting target temperature and humidity, the machine runs self-circulating heating and humidification without manual intervention.
● Convenient daily maintenance: Stainless steel inner tank can be directly wiped with wet cloth; bottom drawer tank is easy to clean scale and sewage.
● Low energy consumption design, low noise circulating fan, suitable for long-term all-day operation in laboratories.
● Complete export supporting: CE certification can be provided for customs clearance; English operation manual and remote video debugging guidance are supplied for overseas customers.
FAQ
Q1: What Is The Standard Temperature And Humidity Maintained By This YH-40B Curing Cabinet?
A: It maintains standard curing temperature 20±2℃ and relative humidity ≥95%, fully complying with international concrete specimen curing standards.
Q2: How Many Standard 150mm Concrete Cube Samples Can This YH-40B Model Hold?
A: The YH-40B cabinet can store around 40 pieces of 150mm standard concrete cubic specimens, ideal for small and medium mixing plants and labs. We also provide larger YH-60B and YH-90B high-capacity models upon request.
Q3: Does The Machine Stop Working Automatically When The Water Tank Runs Out Of Water?
A: Yes, it is equipped with a water shortage protection alarm system. The heating and humidifying system will shut down automatically to prevent component burnout when water is insufficient.
Q4: Can This Curing Cabinet Meet European EN Concrete Testing Standards?
A: Absolutely. It complies with EN 12390-2 and ISO 1920 concrete specimen curing standards, and we can offer CE certification documents for customs clearance in European and Middle Eastern countries.
Q5: What Is The Warranty Period And Overseas After-Sales Service?
A: We provide a 12-month full machine warranty (excluding consumable silicone sealing strips and atomizing humidifiers). We offer free remote video installation guidance, and all standard spare parts can be purchased at factory price after warranty expires.
