Rapid Chloride Permeability Tester

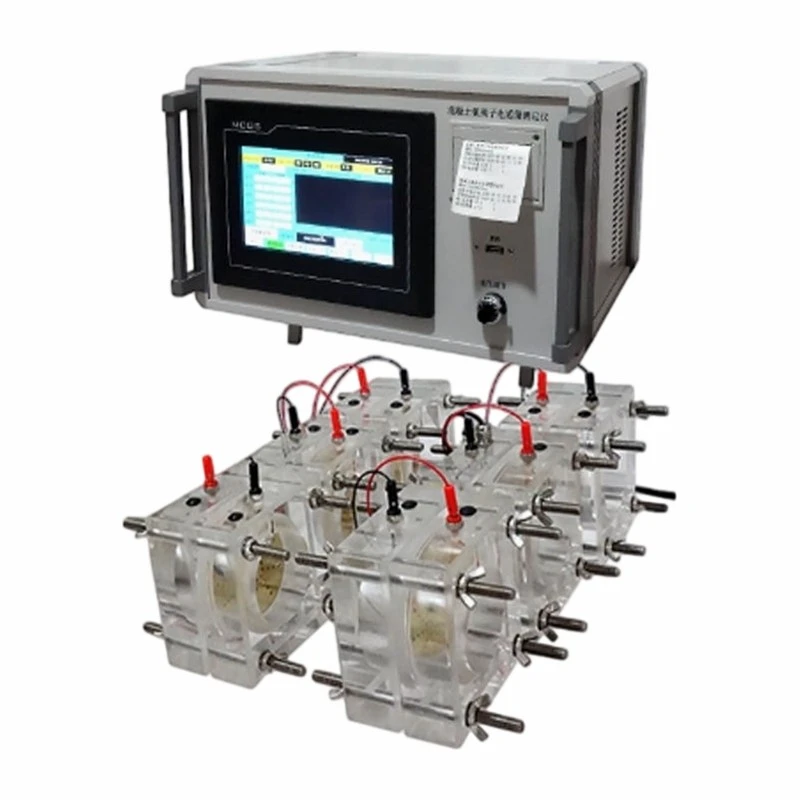

This Rapid Chloride Permeability Tester (RCPT / Chloride Ion Electric Flux Tester) is core durability testing equipment for concrete labs, used to measure total electric charge passing through concrete specimens within 6 hours to judge concrete's resistance against chloride ion penetration. It fully complies with global test standards, adopts split integrated design (touch screen main controller + transparent acrylic test cells), supports simultaneous multi-sample testing, widely exported to civil engineering labs worldwide.
Wide Application Range
● Standard test specimen: Φ100mm × 50mm cylindrical concrete core samples.
● Core testing purpose: Evaluate concrete anti-chloride permeability, predict steel bar corrosion risk for coastal, salt-laden, deicing-salt exposed structures.
● Applicable engineering scenarios: Cross-sea bridges, coastal ports, offshore buildings, highway pavements, underground tunnels, sewage & hydraulic projects.
● Target end users: Third-party accredited testing laboratories, ready-mix concrete plants, university civil engineering colleges, municipal construction quality inspection stations, marine engineering contractors.
● Compliant international standards: ASTM C1202, AASHTO T277, NT Build 492, GB/T 50082.
● Lab matching equipment: Matches concrete vacuum saturation machine, concrete impermeability tester, compression machine to build complete concrete durability testing system.
Premium High-Grade Material & Stable Structure
● Main control cabinet: Thick cold-rolled steel shell with electrostatic anti-rust spraying, sealed waterproof touch screen panel, resistant to chemical liquid splashing in lab environments.
● Test cells (transparent molds): High-transparent thick acrylic one-piece casting, acid & alkali corrosion resistant, no deformation under long-term soaking of NaCl/NaOH solution; internal flow channel smooth for easy cleaning.
● Electrode components: Platinum coated electrodes with stable conductivity, anti-corrosion, long service life without frequent replacement.
● Connection wiring: High temperature resistant insulated copper wires, anti-aging, stable current transmission without signal drift.
● Independent split design: Main controller separated from test molds, avoid liquid corrosion to control circuit; each test channel works independently without mutual interference.
● Humanized layout: Quick-clamp specimen fixing structure, fast assembly & disassembly without complicated tools.
Precise & Stable Test Results
● Standard 60V DC constant voltage output, accurate real-time coulomb (electric flux) calculation, measurement precision up to 0.1C.
● Multi-channel synchronous test model (4/6/9 channels optional), supports multiple specimens running test at the same time to boost lab daily inspection efficiency.
● Built-in automatic temperature monitoring module, compensates test data for ambient temperature fluctuations to eliminate accuracy errors.
● Full 6-hour automatic test cycle: Auto record current, voltage, time and total flux data every 30 minutes; automatically save all test curves and original records once finished.
● Large-capacity built-in storage, supports USB data export and printed formal laboratory test reports for project filing & third-party audit.
● Independent over-current & over-voltage protection for each channel; automatically alarm and cut off power when abnormal circuit occurs to protect machine and specimens.
Ultra-Easy Operation & Low Maintenance
● 7-inch industrial touch screen with English operation interface, visualized operation menu; new operators can complete full test workflow without professional chemical training.
● One-click automatic test program: Input specimen information, connect test cells, start the machine to finish full 6-hour unattended testing.
● Simple daily cleaning: Transparent acrylic molds can be directly rinsed with clean water to wash residual salt solution; electrode only needs regular distilled water wiping.
● Standard universal spare parts: Electrodes, sealing gaskets and wiring are standardized accessories, convenient for global overseas after-sales replacement.
● Complete export support: CE certification available for customs clearance; full English operation manual, wiring diagram and remote video installation & debugging guidance are provided for all overseas customers.
FAQ
Q1: What Standards Does This Rapid Chloride Permeability Tester Comply With?
A: It meets ASTM C1202, AASHTO T277, NT Build 492 European standard and China GB/T 50082, fully satisfies testing requirements for domestic, European, American and Middle East engineering projects.
Q2: How Many Specimens Can This Machine Test At One Time?

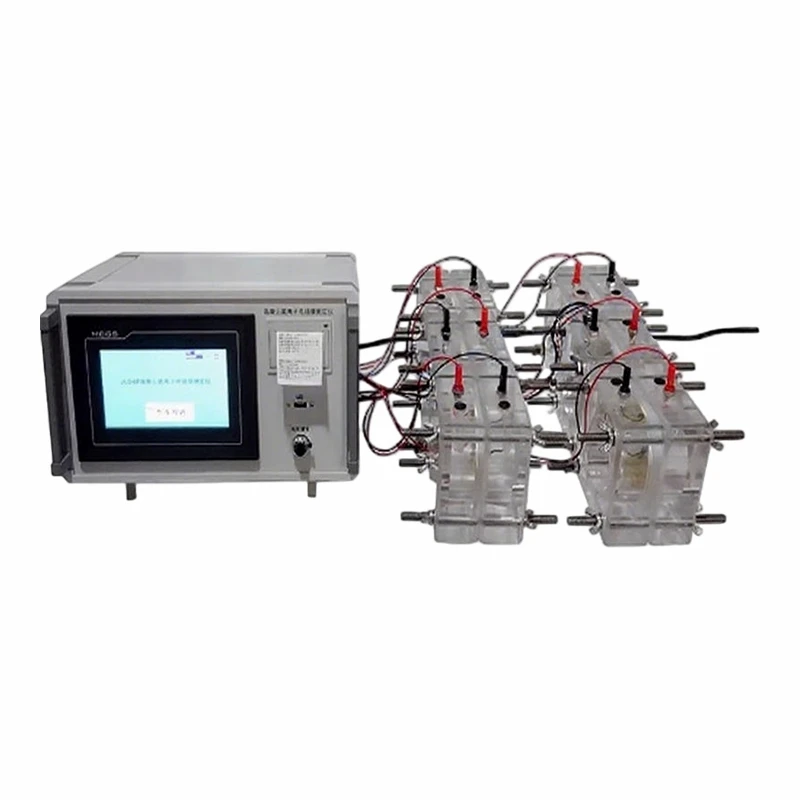

A: We supply three mainstream models: 4-channel, 6-channel and 9-channel. The 6-channel version as shown in the picture is the most popular choice for medium and large testing labs.
Q3: What Pre-Treatment Equipment Is Needed Before Testing Concrete Samples?
A: Concrete specimens need vacuum water saturation treatment before the electric flux test. We can provide matched intelligent concrete vacuum saturation machine as supporting equipment.
Q4: Is The Acrylic Test Cell Resistant To Chemical Salt Solution Corrosion?
A: The test molds are made of thick industrial acrylic, which resists long-term immersion of sodium chloride and sodium hydroxide solution, no cracking or corrosion within 5 years under normal use.
Q5: What Is The Warranty Period And Overseas After-Sales Service?
A: We provide 12-month full machine warranty (excluding consumable electrodes and sealing gaskets). Free remote video debugging guidance is available; all spare parts can be purchased at factory price after the warranty expires.
