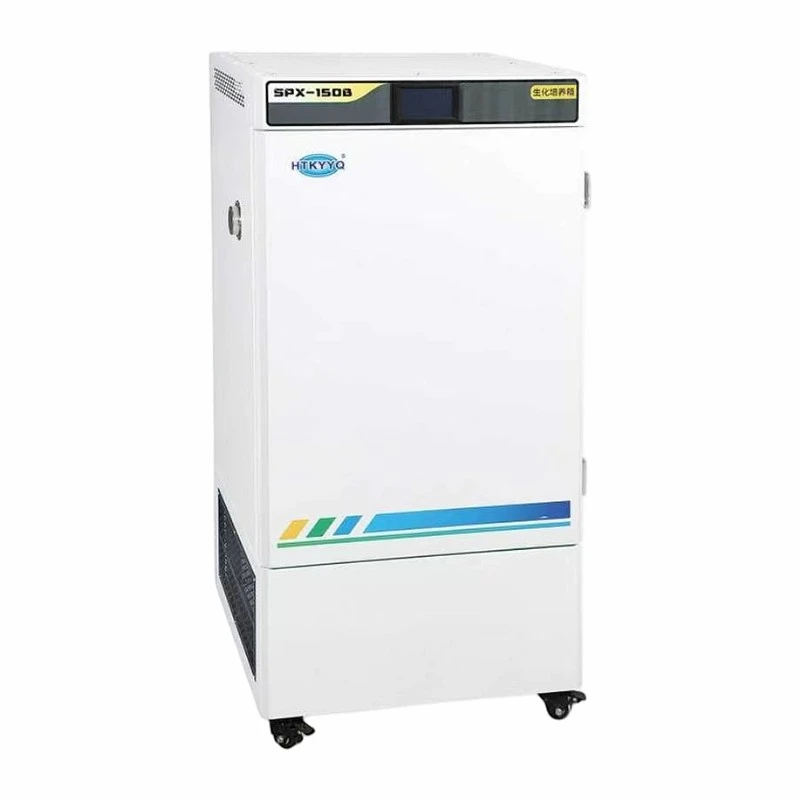

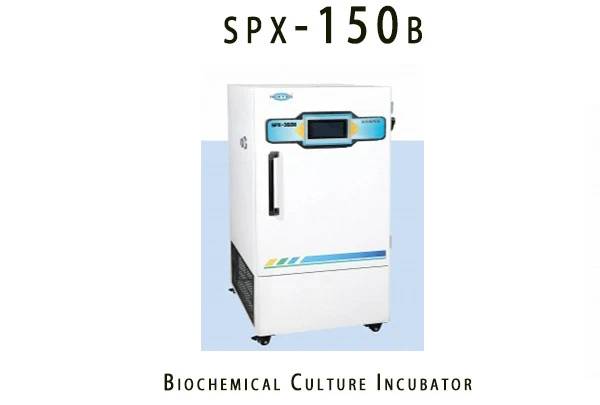

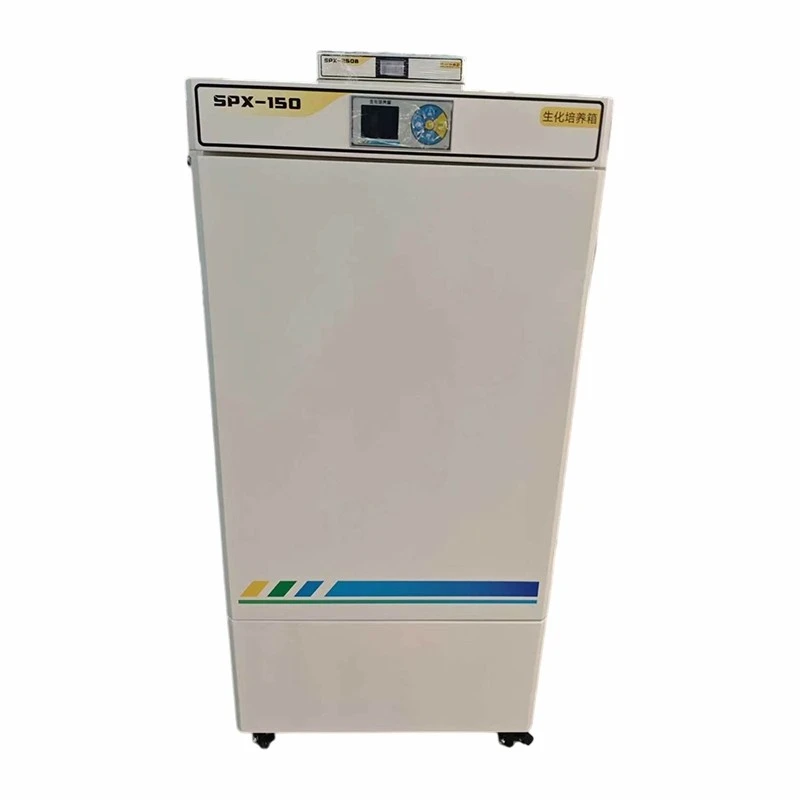

SPX-150B Biochemical Incubator
Working Principle
This SPX-150B biochemical incubator adopts balanced PID temperature control combined with electronic expansion valve refrigeration system. It precisely stabilizes the internal temperature between 0℃ and 65℃ to simulate constant-temperature culture environments required for biological samples. Equipped with a low-noise compressor using eco-friendly R134a refrigerant, the unit achieves frost-free operation across the full temperature range. Independent upper and lower air ducts form uniform circulating airflow, minimizing temperature fluctuation and ensuring consistent incubation conditions for microbes, cells and tissue samples. Built-in timing, multi-segment programmable control and over-temperature alarm functions guarantee stable, repeatable experimental environments for long-term biological cultivation.
Premium Material Configuration
● Outer Cabinet: Cold-rolled steel plate with electrostatic anti-rust coating, scratch-resistant and long service life
● Inner Chamber: Mirror polished 304 stainless steel, adjustable layered shelves, seamless design for easy disinfection and cleaning
● Door Structure: Independent glass observation door with tight silicone sealing strips to prevent external contamination and temperature loss
● Internal Accessories: Built-in LED interior lighting, 50mm standard observation test hole for real-time sample monitoring without opening the door
● Control Panel: 5-inch touch screen intelligent controller with RS485 communication port and USB data export interface for experimental data archiving.
Wide Application Scopes
SPX-150B biochemical incubator is standard core laboratory equipment for biological constant-temperature cultivation, widely applicable to multiple industries and research institutions:
1. Microbiology Labs: Bacteria, fungi and microbial strain culture & preservation.
2. Biomedical & Pharmaceutical Institutes: Cell incubation, drug development and pharmacodynamic testing.
3. University & Vocational College Laboratories: Biological teaching experiments, genetic research.
4. Third-Party Inspection Organizations: Environmental microbial testing, food microorganism detection.
5. Agricultural Research Institutes: Seed germination tests, plant tissue culture.
User-Friendly Operation Features
1. 5-inch touch screen with multi-point temperature calibration; supports 999-segment programmable temperature cycles, timing and timing cycle functions.
2. Self-diagnosis, audit tracking and over-temperature automatic alarm functions to avoid sample damage caused by abnormal temperature.
3. Long-axis centrifugal fan with multi-group air outlets, uniform internal temperature distribution, energy-saving and low-consumption operation.
4. Portable casters for flexible equipment movement; standard 3 shelves, maximum 11 shelves to hold batches of test samples.
5. Reserved RS485 and USB interfaces for data export, convenient for lab report sorting and experimental data tracing.
FAQ
Q1: What Is The Effective Internal Volume Of The SPX-150B Incubator?
A1: The inner chamber capacity is 159L, with internal dimensions 530×400×750mm, which can hold up to 11 sample shelves for large-batch cultivation tests.
Q2: Can This Incubator Run Frost-Free At Low Temperature Close To 0℃?
A2: Yes. It adopts imported brand compressor and eco-friendly R134a refrigerant, supporting frost-free operation over the full 0–65℃ temperature range without manual defrosting.
Q3: Is It Possible To Observe Samples Without Opening The Cabinet Door During Cultivation?
A3: Yes. It is fitted with a built-in glass observation door, internal LED lighting and a 50mm side observation test hole, enabling real-time sample viewing without disrupting the internal constant temperature environment.
Q4: What Data Export Functions Does This Incubator Support?
A4: The machine is equipped with standard RS485 communication port and USB export interface. Temperature curves, running records and alarm logs can be exported for laboratory filing and traceability.
Q5: How Many Sample Shelves Are Provided As Standard, And Is Extra Shelf Expansion Available?
A5: 3 adjustable stainless steel shelves are supplied as standard. Extra shelves can be purchased separately, with a maximum loading capacity of 11 shelves for the 159L chamber.
